How to Install a Link Code 4 Builders Range Roller Blind

By Betta Blinds and Awnings - 5th May 2022
Note
This applies to our Builders Range Roller Blinds but our Standard Range Roller Blinds are installed in a similar way.

What is a Link Code 4?

A Link Code 4 creates a link between three Roller Blinds that features chain drives on both sides of the window. In a code 4 the middle blind and the right blind operate together with the same chain drive. The left blind operates independently using the left control.

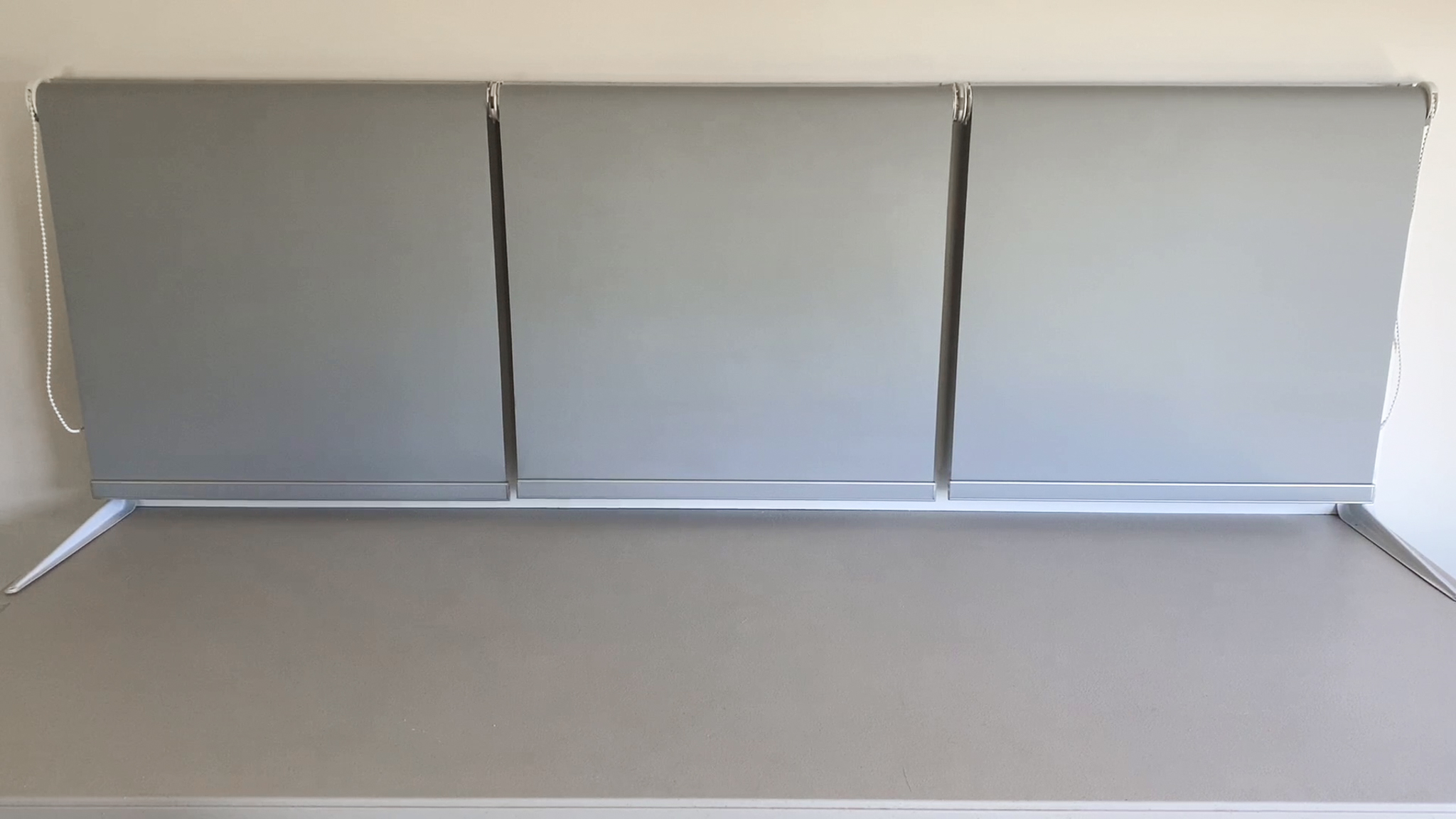

Installed link code 4 roller blinds

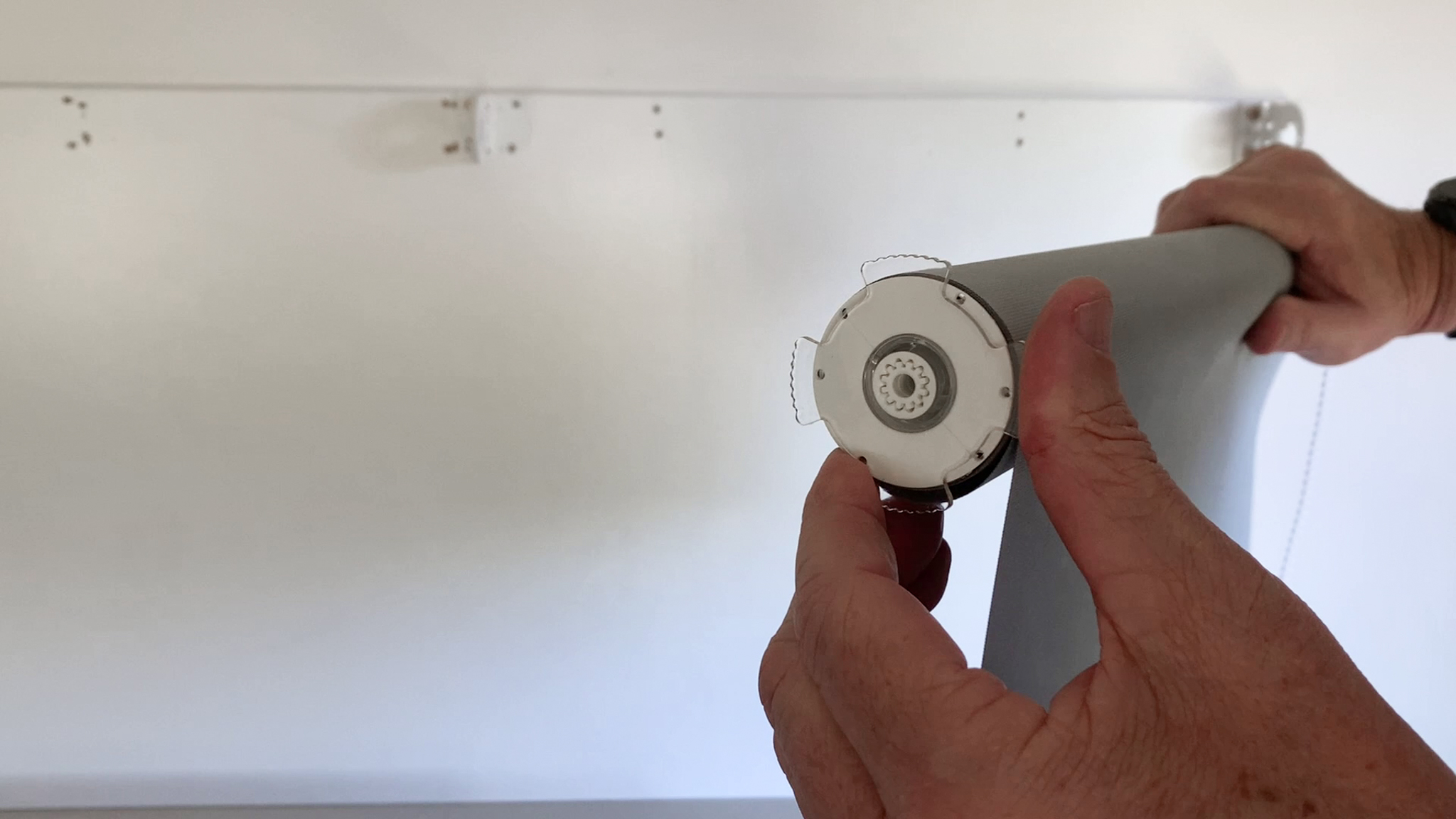

Retract the Female Pin

Start by installing the right hand blind.
1. Rotate the clear plastic part to retract the female pin on the linking drive
three roller blinds joined

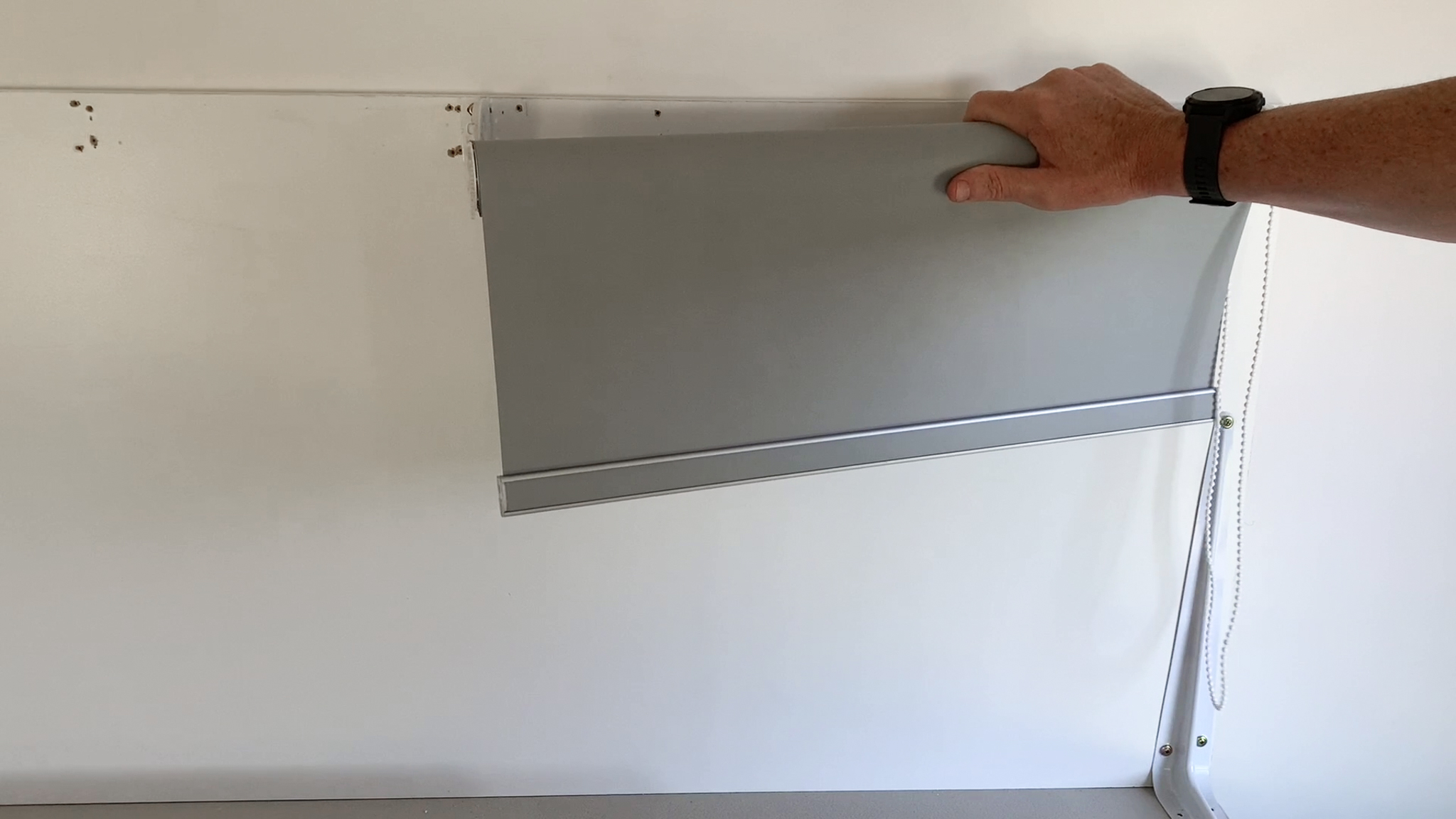

Install the Right Blind

2. Install the blind by inserting the chain drive end into the bracket.
3. Carefully press the linking end of the blind into the corresponding bracket. It has a channel that should guide the linking end easily into place.
linked code 3 roller blinds

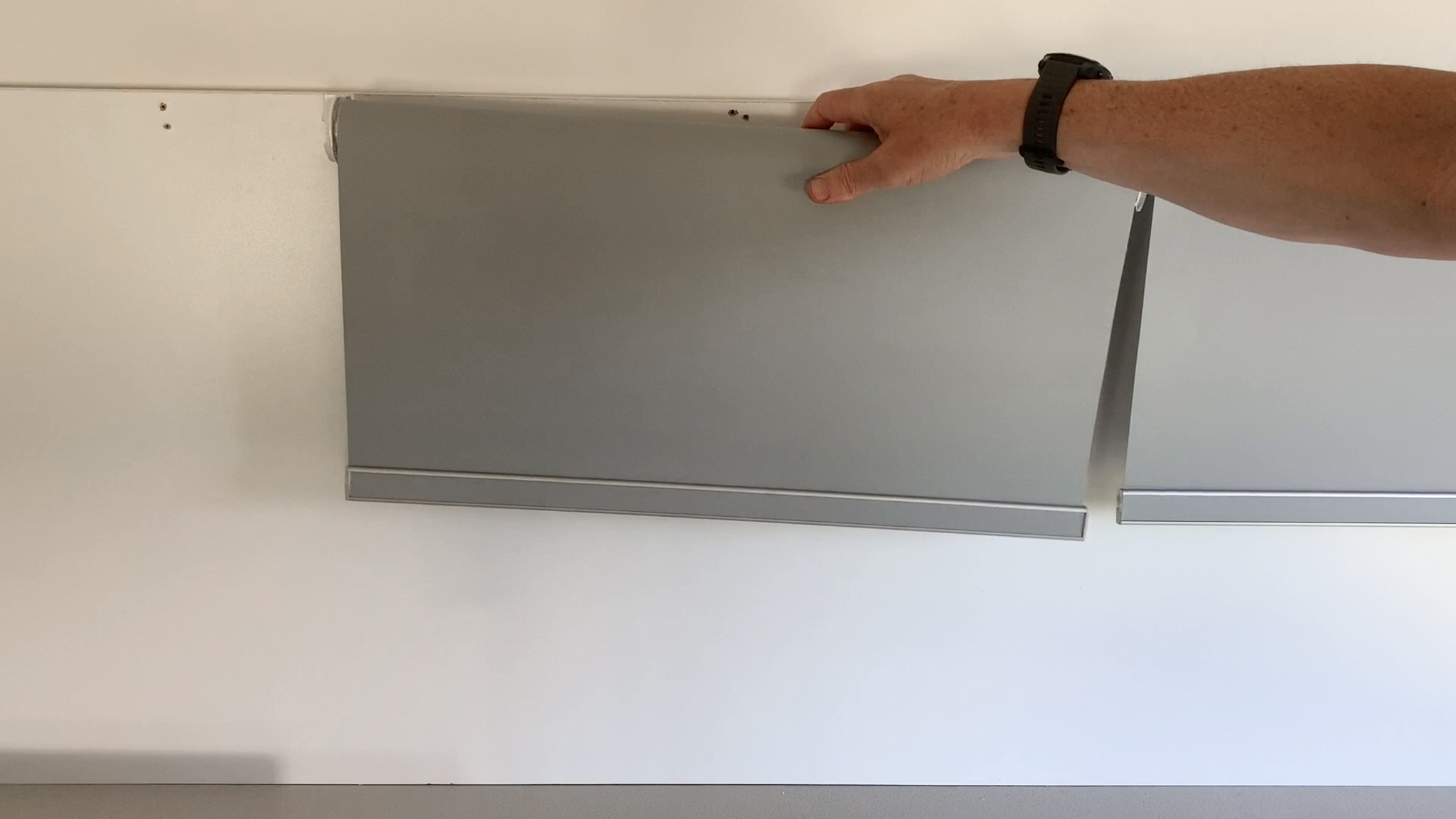

Install the Middle Blind

4. Install the middle Blind by pushing the left end into the bracket.
5. Insert the right side of the middle blind into the bracket. Keep the Blind supported as it is not correctly linked to the right-hand blind yet.
three linked roller blinds

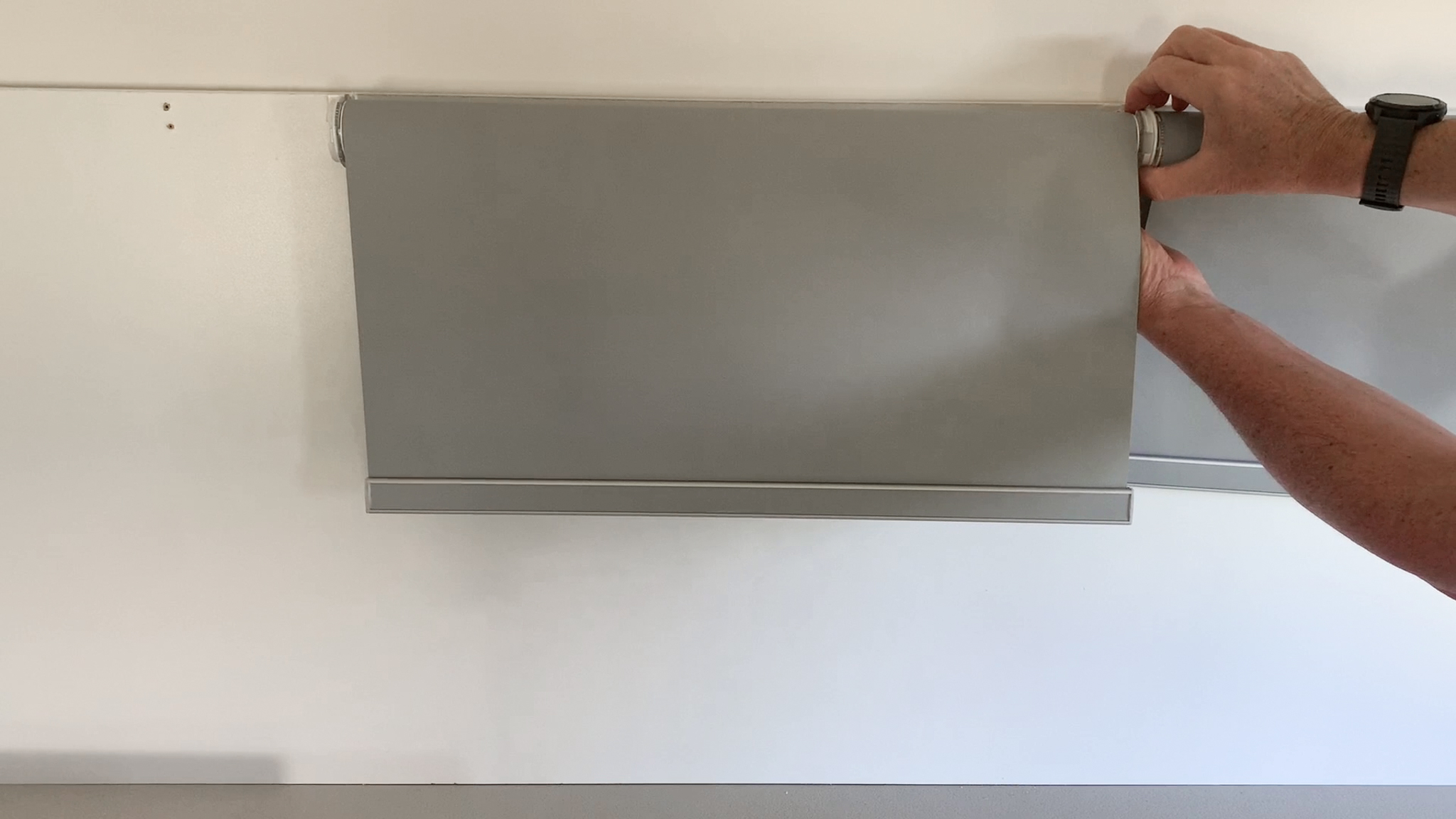

Link the Blinds

6. Rotate the clear plastic winder to engage the gears and link the blinds.
7. Align the bottom rails by turning the clear plastic winder and moving the bottom rail to the correct position.
linked roller blinds

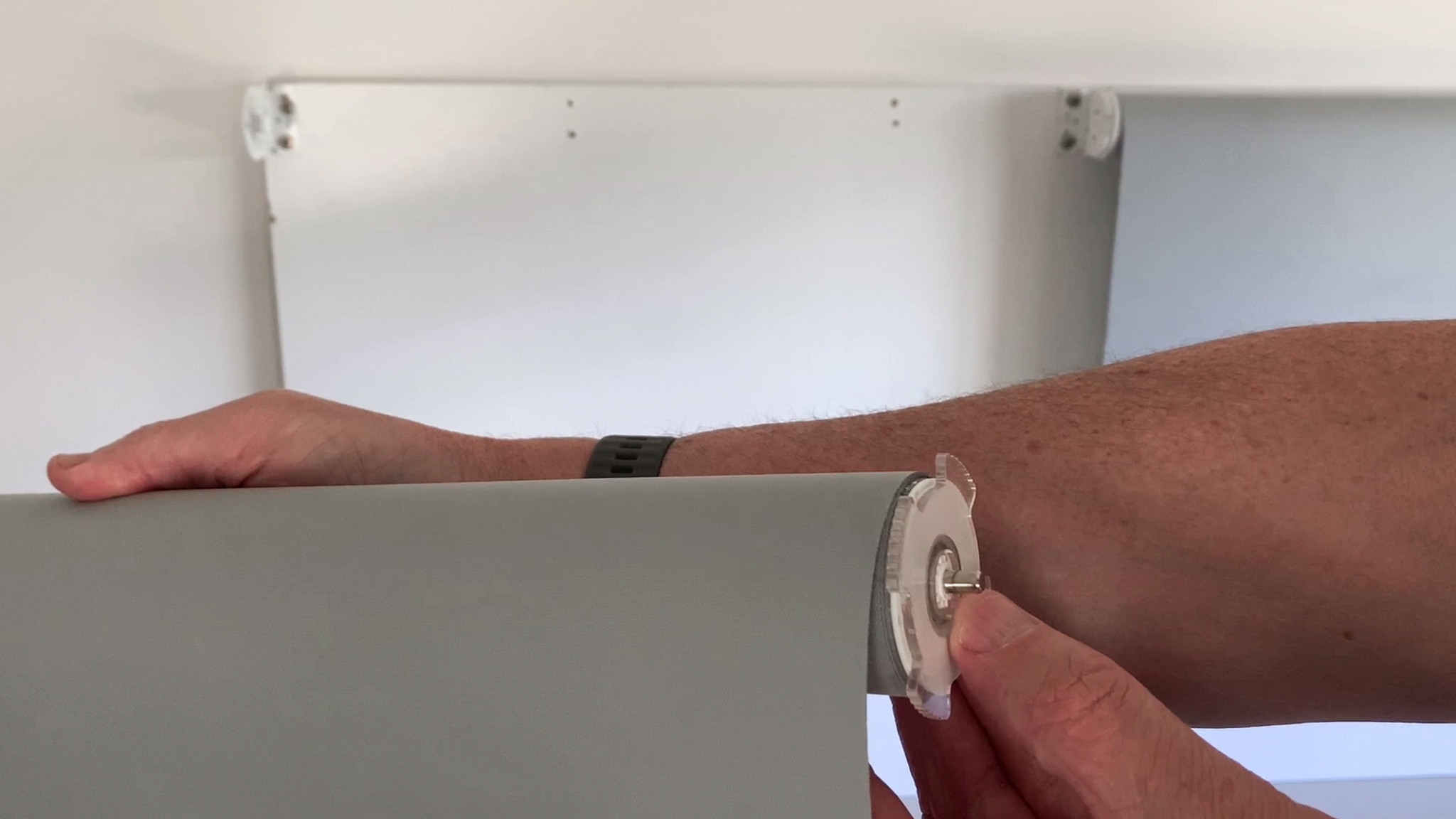

Retract the Idle End

8. Ensure the Idle End is in the retracted position as shown below.
link code three roller blinds

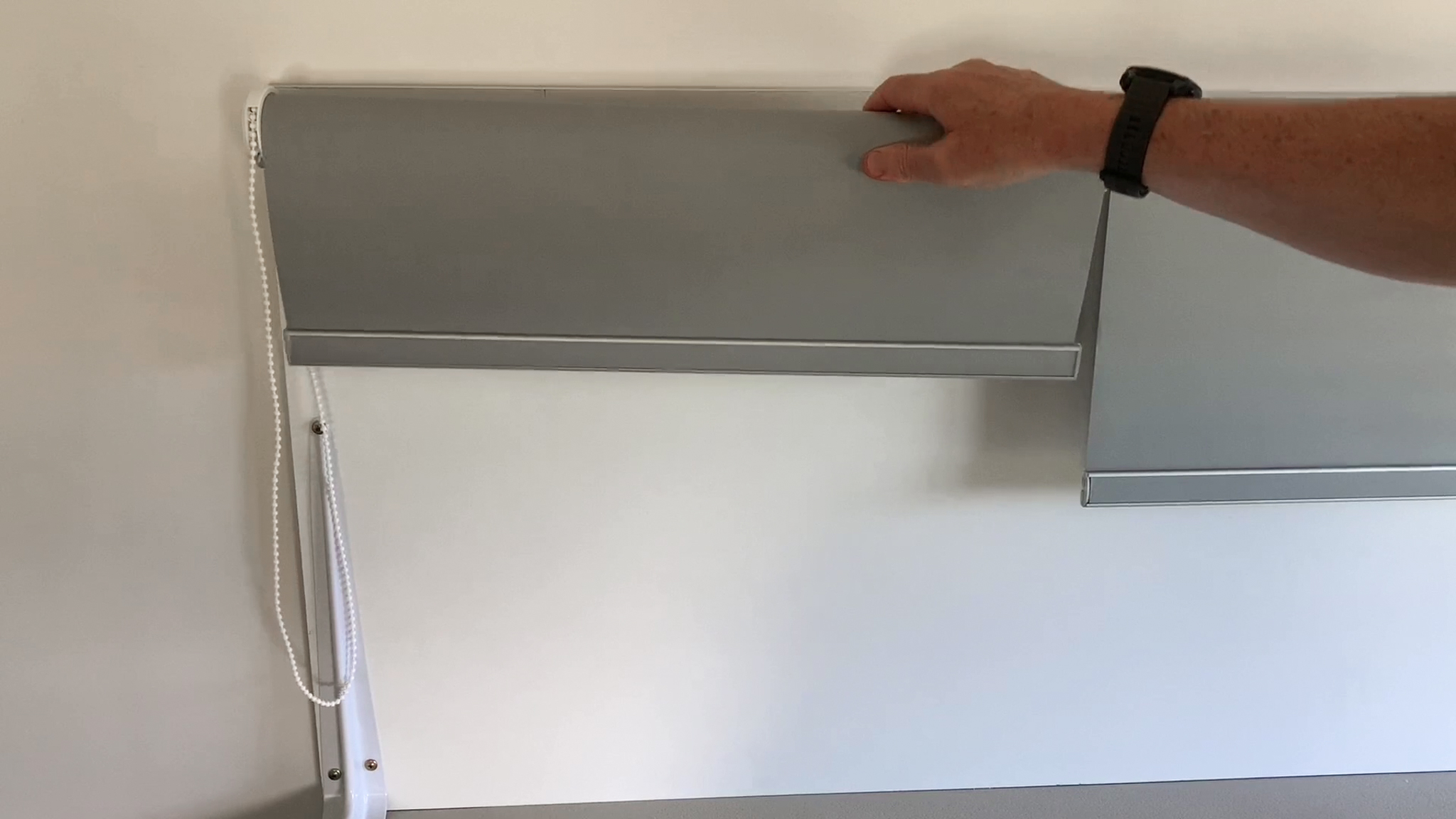

Install the Left Blind

9. Install the left blind by pushing the chain drive end into the brackets.
10. To finishing installing push the idle end into the bracket until your hear it click into place.
linked roller blinds

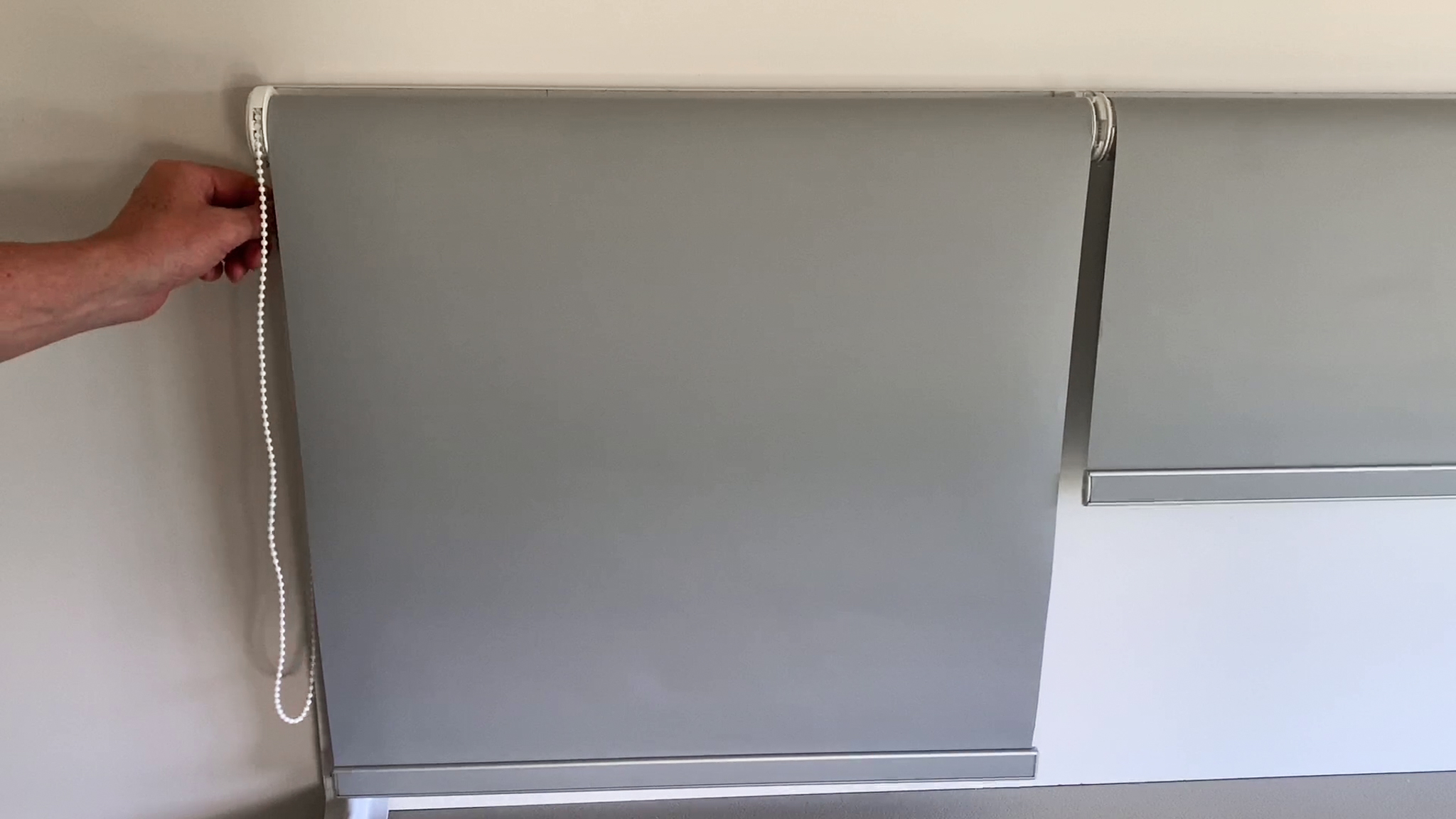

Test

11. Test all of the blinds to ensure that they all operate correctly.
linked roller blinds 3

And You're Done!

Congratulations you have successfully installed a Link Code 4 Roller Blind.
