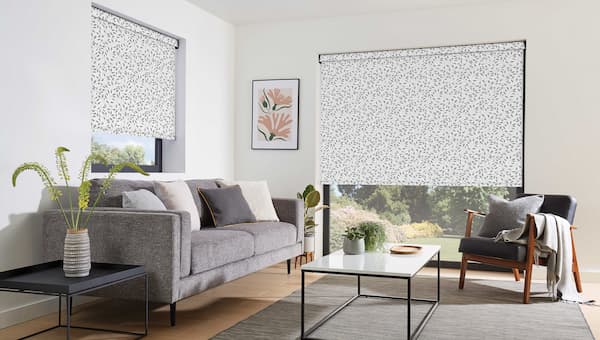

Roller Blinds


There is a stunning versatility to our Roller Blind collection which will add glamour to any interior. We have a wide range of blind styles with a vast choice of textiles available.

Roller Blinds are great for privacy, heat and light protection. Our smooth operating Classic Rollers are available in a selection of fabrics, including blockouts, sheers, opaques and sunscreens. Choose from our huge range of colours, weaves and textures. Whatever your choice, Betta Blinds and Awnings are sure to have Roller Blinds to complement your home or office setting.

Different Types of Roller Blinds

Our Roller Blinds are separated into five categories or groups: Single, Dual, Linked, Butting and Builders Range. We expand on each blind type in more detail below and give an overview of the applications and options for each. Please click on the links to jump to a desired section.

In brief the blind types are:
  • Single - One blind, one opening
  • Dual - Two blinds, one opening
  • Linked - Two to four blinds covering one opening, with at least two of the blinds linked and operated by one controller
  • Butting - One pelmet over two or three blinds installed side by side, one opening
  • Builders Range - Budget friendly with limited options
Jump directly to these sections: MotorisationChain OperationCassettesPelmets and Bottom Rails

Single Roller Blinds

Single Roller Blinds are the simplest and as the name suggests are one blind covering one opening consisting of two installation brackets and one controller. Most of the features listed here apply to all of our Standard Roller Range e.g. Dual, Linked and Butting. (Does not apply to Builders Range).

  • Cassettes: Round or Square with the option of side and bottom channels for full sun blockout -  Available single blinds only
  • Either motorised or chain operated
  • Spring assist for larger chain operated blinds
  • Motorisation from: Automate, Alpha and Somfy
  • Bottom Rails: Flat - with or without fabric insert, Oval - with or without bumper strip, Round and H1 - Flat bottom rail inserted in the blind hem. Colours available vary depending on the rail type.
  • Maximum Width: 3000mm (Not warranted over 2430mm for veeing, bagging or stretching)
  • Maximum Drop: 2200mm
  • Multiple bracket options: 40mm Stainless Steel, 40mm Standard and 55mm Projection Brackets
Single Roller Blinds
Single Roller Blinds

Single Blind Bracket Options

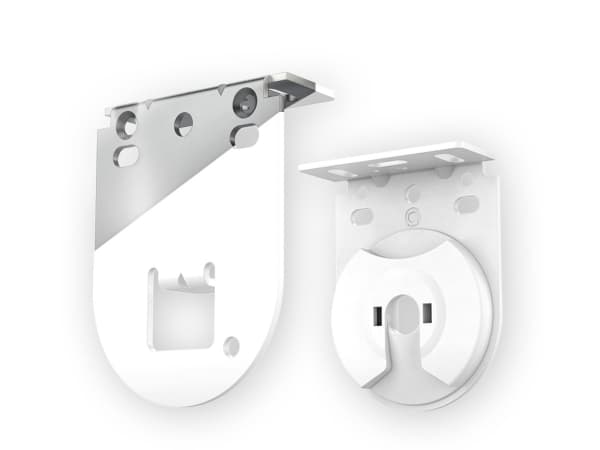

40mm Stainless Steel Brackets

Perfect for coastal areas. Colours: White and Black.
40mm Stainless Steel Brackets

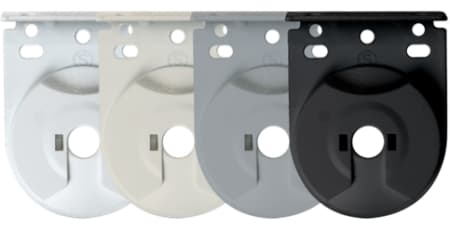

40mm Standard Brackets

Colours: White, Sandstone, Silver Grey and Black.
40mm Standard Brackets

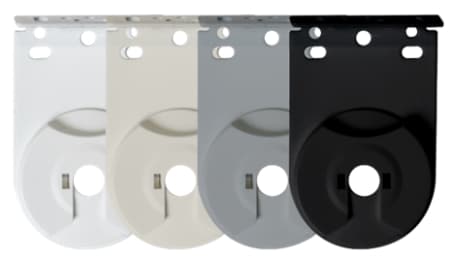

55mm Projection Brackets

Colours: White, Sandstone, Silver Grey and Black
55mm Projection Brackets

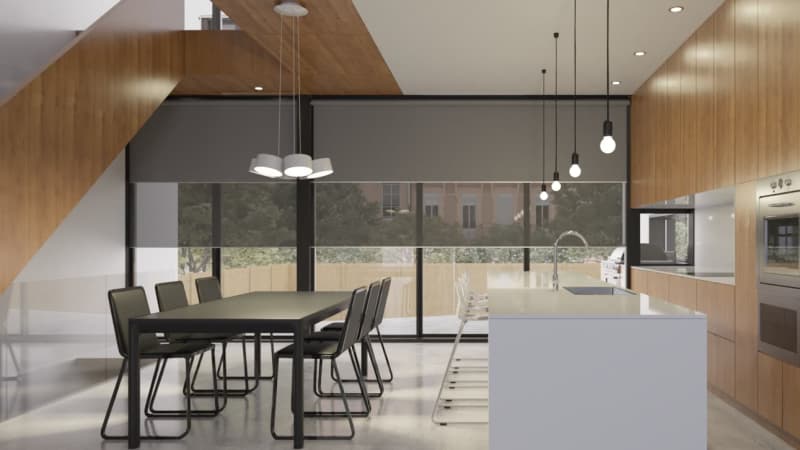

Dual Roller Blinds

Dual Roller Blinds make two blinds covering one opening possible and normally utilise a combination of Blockout and Translucent or Mesh/Screen materials. Blockout materials are normally installed in the top front position and will privide privacy both night and day and complete shading from the most intense sun in the hottest part of the day. Light filtering and mesh screen materials are installed in the bottom back position, allowing external light in while providing privacy during the day. Overall dual blinds have similar options available as single blinds, however the main points of note are:

  • Optional 160mm Fabric pelmets only
  • Top Blinds can only be Forward Roll
  • Bottom Blinds can be Forward or Back Roll
  • Control side available is determined by the selected bracket, see below
  • Bracket Colours: White, Sandstone, Silver Grey and Black.
Dual Roller Blinds
Dual Roller Blinds

Dual Blinds Bracket Options

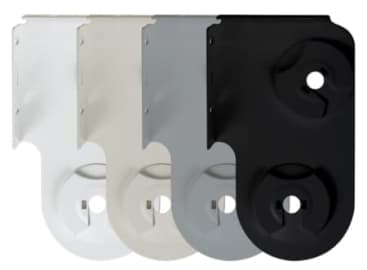

Standard Slim Profile Dual Brackets
The control side may be left of right but must be the same for both the Top and Bottom blinds.
Standard Slim Profile Dual Brackets
X Slimline Dual Brackets
The Top Blind is only available with left-hand control and the Bottom Blind is only available with right-hand control.
X Slimline Dual Brackets

Linked Roller Blinds

Linked Roller Blinds consist of two, three or four blinds covering one opening with one controller operating two of the blinds in unison. One pelmet that covers all linked blind headers may be optioned. Control sides are predetermined by the link code selected. Available with single and dual brackets, below. Please see diagram here.

In brief the linked options include:

  • Two blinds linked with the controller either left or right. Link codes 1 and 2.
  • Two blinds linked with controllers on the both the left and right sides. Link code 3.
  • Three blinds with two controllers: Two blinds linked with one controller for either the left or right and centre blinds, with the third blind having it's own controller. Link codes 4 and 5.
  • Four blinds with two controllers: Two sets of blinds linked with one controller for each set of blinds for both the left, right and central blinds. Link code 6.
  • Wired Motor operation only: Three blinds with one controller, either left or right. Link codes 7 and 8.
  • Dual linked available with Standard Slim Profile Brackets.
Linked Roller Blinds
Link Code 5 Shown: Left Hand Control for Left & Centre Blinds and Right Hand Control for Right Blind

Linked Blinds Bracket Options

40mm Standard Brackets

40mm Standard Brackets Linked
Standard Slim Profile Dual Brackets

Standard Slim Profile Dual Brackets Linked

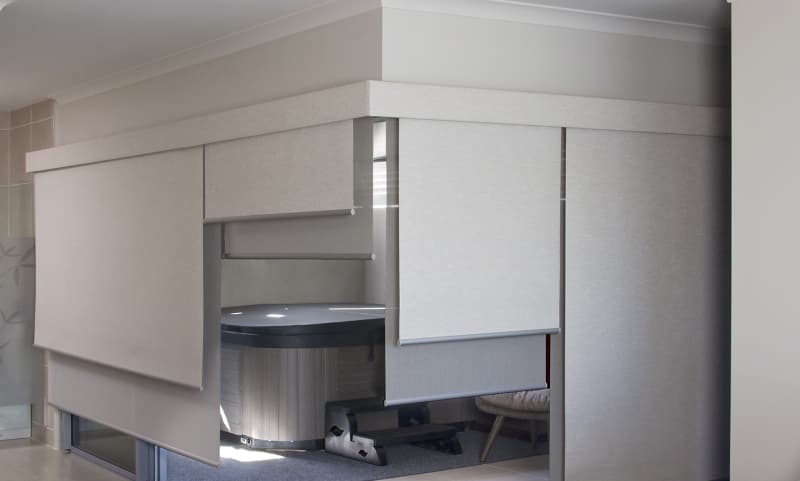

Butting Blinds Under One Pelmet

When two or three blinds are installed side by side under one pelmet we call them Butting Blinds. They are a great option for larger openings where a pelmet is required and you want individual controllers for each blind. All single and dual brackets can be utilised.

Main points of note:
  • Double Butting - Two blinds positions under one pelmet
  • Triple Butting - Three blinds positions under one pelmet
  • Single Butting Blinds can be installed with any style of pelmet
  • Dual Butting Blinds are limited to 160mm Fabric pelmets
  • Controllers for Single Butting Blinds can be on any side
  • Controllers for Dual Butting with Standard Slim Profile Brackets can be either left or right but must be on the same side for both Top and Bottom blinds.
  • Controllers for Dual Butting with X Slimline Brackets are limited to the Top blinds right only and the bottom blinds only left.
Butting Blinds Under One Pelmet
Butting Blinds Under One Pelmet

Butting Blinds Bracket Options

As Butting Blinds are individual blinds installed under one pelmet, all bracket types are available. Take your pick.

Stainless Steel 40mm brackets are only available in White. All other brackets are available in colours: White, Sandstone, Silver Grey and Black.
40mm Stainless Steel Brackets

40mm Stainless Steel Brackets
40mm Standard Brackets

40mm Standard Brackets
55mm Projection Brackets

55mm Projection Brackets
Standard Slim Profile Dual Brackets

Standard Slim Profile Dual Brackets
X Slimline Dual Brackets

X Slimline Dual Brackets

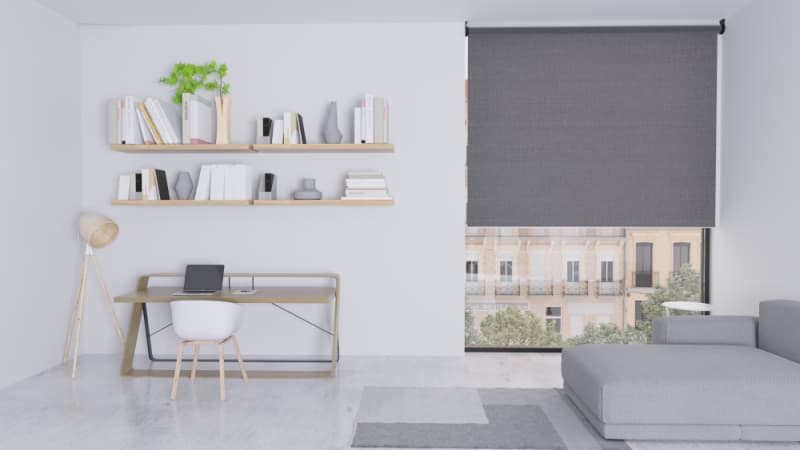

Builders Range Roller Blinds

Builders Range Roller Blinds are a great choice if you have a set budget in mind. There is however a limit to the available options and the componentry differs to the standard rollers above.

At a glance:
  • Manual chain operation only
  • Single, Linked, Dual and Butting under one pelmet available
  • Blockout, Screen and Light Filtering materials available, limited to four fabrics with multiple colour options
  • Single Blind Brackets: Standard 40mm, Black or White
  • Dual Blind Brackets: Slim Profile Dual Bracket, Black or White - click here for more info
  • Dual Blinds Control Sides: Must be the same for BOTH Top and Bottom blinds, either Left or Right
  • Dual Blinds Roll Direction: Top blinds - Forward roll only, Bottom blinds - either Forward or Back roll
  • Linked Blinds: Configurations and Link Codes available are the same as the standard chain operated roller blinds
  • Bottom Rails: Oval only, optional bumper strip
Builders Range Roller Blinds
Builders Range Roller Blinds

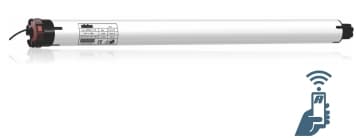

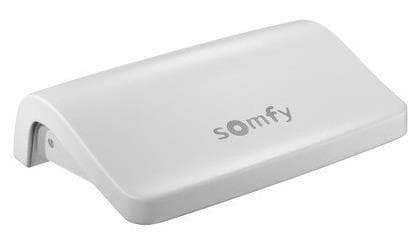

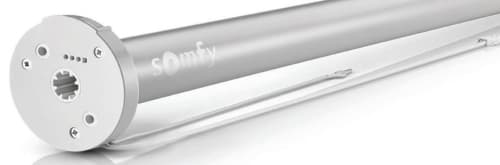

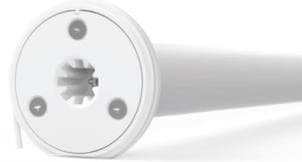

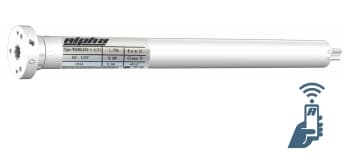

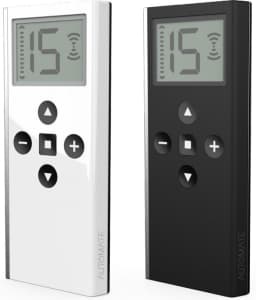

Motorisation

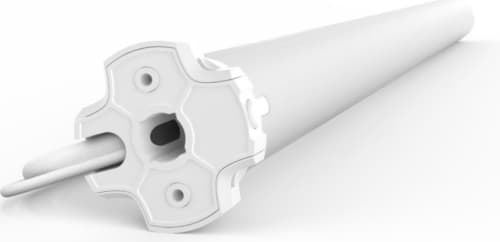

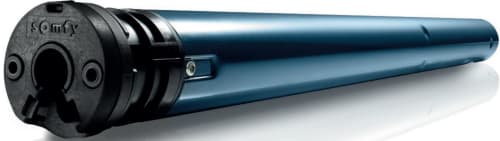

We stock motors from Australia’s leading Home Automation suppliers:  Alpha, Automate and Somfy.
All brands offer battery and hardwired motors and can be operated by remote control, directly through the manufacturers app, or voice activated.
Whatever your needs are we’ve got it covered!
Alpha logo
Automate Logo
somfy logo

Manual Chain Operation

Chains are available in colours: Stainless Steel, Black, Birch White and White. A variety of lengths are available with the standard length supplied based upon the blind's drop.

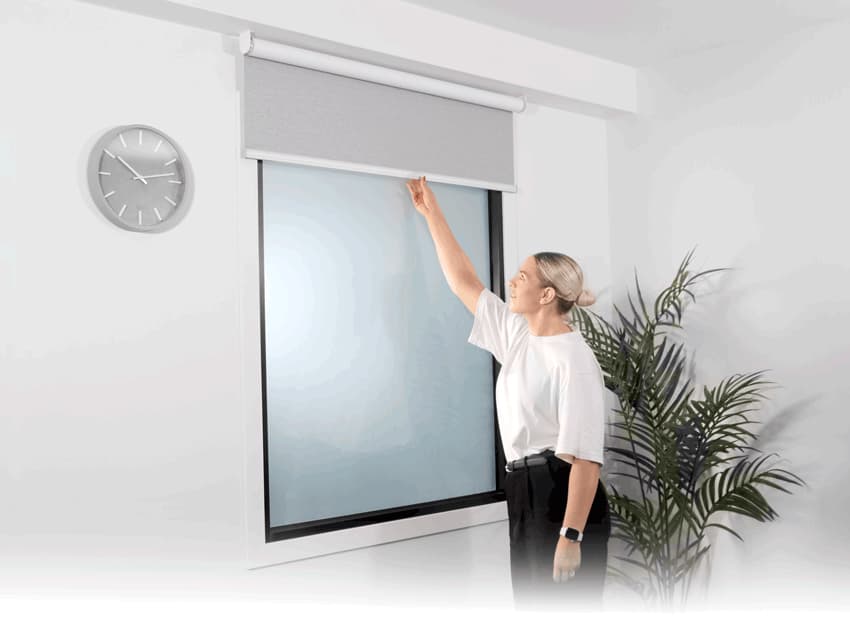

Spring Assist is available for larger blinds and helps to relieve the pressure on the chain and guide mechanism when retracting. For blind widths 2430mm and over, spring assist is a must have, they can however be optioned in for widths under this size.
Spring Componentry
Roller Blind with Spring Assist
Standard Chain Operated Roller Blind
Standard Chain Operated Roller Blind

Cassettes

Cassettes are a stylish option to fully enclose your roller blind header and come in either Round or Square. They can be combined with side and bottom channels to create full blockout which is a great option for media rooms and night shift workers.

What you need to know:
  • Only availble for single blinds. (Not available in builders range)
  • Square or Round cross section
  • Left or right control side
  • Chain or motorised operation
  • Back Roll direction only
  • Brackets: 40mm Standard Brackets - Silver Grey only
Cassettes with Side and Bottom Channels...
.. for full sun blockout in the day
Cassette Dimensions
Cassette Dimensions

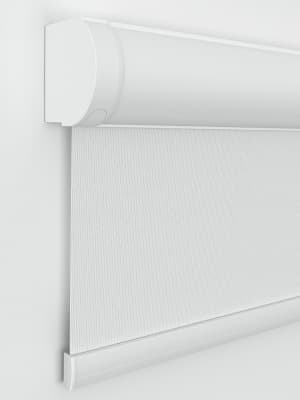

Round Cassette
Round Cassette

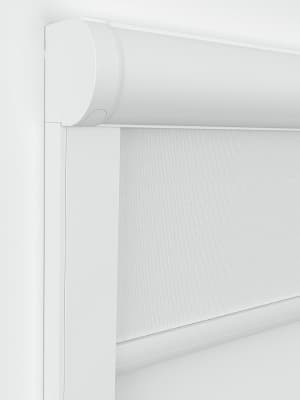

Round Cassette with Channels
Round Cassette with Channels

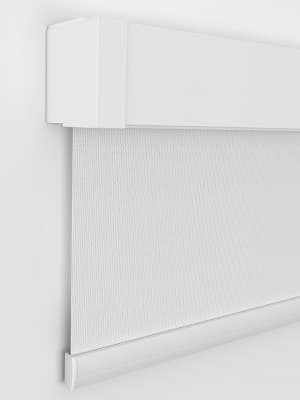

Square Cassette
Square Cassette
Square Cassette with Channels
Square Cassette with Channels

Pelmets

In addition to Cassettes we offer a range of Pelmets designed to meet the needs of your setting and styling requirements.

Pelmets available with Single, Single Linked and Single Butting Blinds:
  • Vogue - Semi cassette. Colours: Anodise Clear, Birch White, Black, Rivergum and White
  • Classic Style Fabric Pelmets: 160mm and 90mm
  • Linea with Fabric Insert. Colours: Chrome, Black, Ivory and White.
  • Woodlook. Colours: Arctic Snow (Smooth or Textured), Ash Printed, Desert Printed, Ivory Smooth and Sienna Printed

Pelmet available with Dual, Dual Linked and Dual Butting Blinds:
  • 160 mm Fabric Pelmets

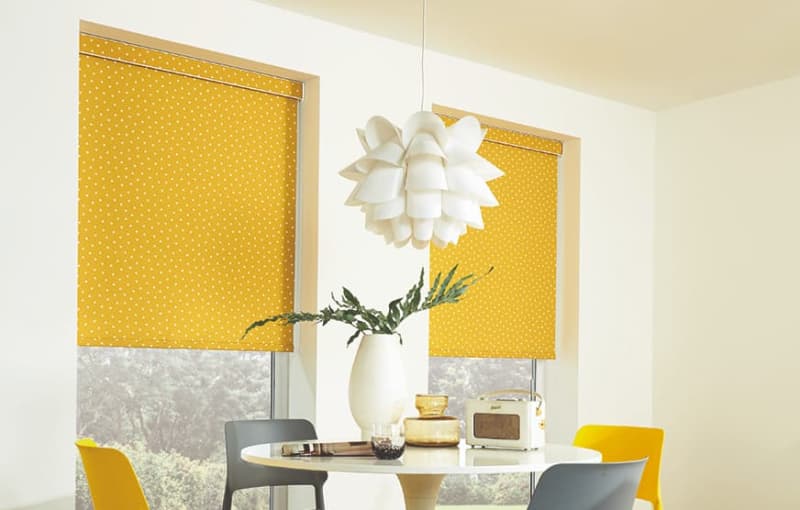

Fabric Pelmets in reveal installation
Fabric Pelmets in reveal installation

Bottom Rails

Choose from our selection of bottom rails. Mutlipe colour options available depending upon the selection.

  • Oval Bottom Rail*. Colours: Anodised Clear, Birch White, Black, Chrome, Rivergum and White

  • Flat Bottom Rail with fabric insert. Colours: Anodised Clear, Birch White, Black, Rivergum and White

  • Flat Bottom Rail without fabric insert. Colours: Anodised Clear, Birch White, Black, Rivergum and White

  • H1 Trim Bottom Rail - Sewn Hem with Flat Bottom Rail insert

  • D30 Bottom Rail. Colours: Anodised Clear, Black, Birch White, White

*Please note oval bottom rail comes standard with a bumper strip in our Standard Range only.

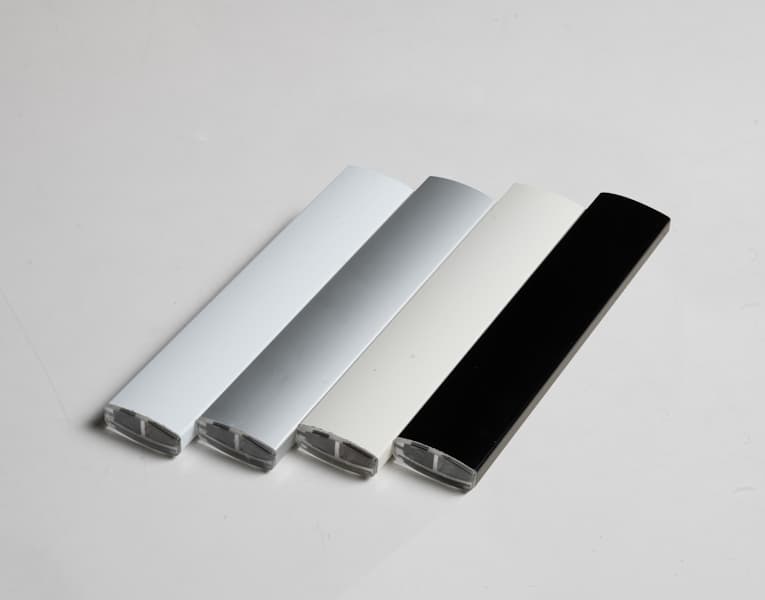

Flat Bottom Rails

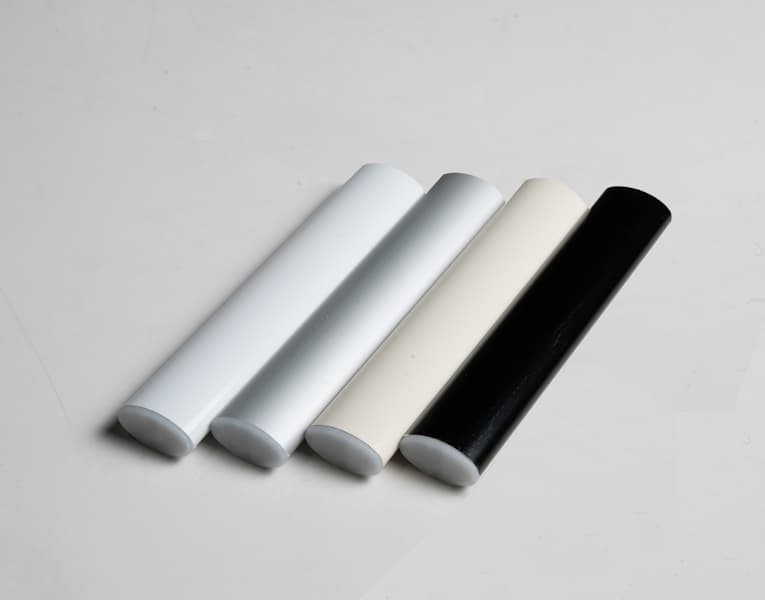

Oval Bottom Rails

Features, Benefits and Options

  • Motorised
  • Chain Operated
  • Spring Assist
  • Extensive Fabric Range
  • Linked available
  • Dual available
  • Selection of Pelmets
  • Selection of Bottom Rails
