How to Install a Link Code 1 Builders Range Roller Blind

A Link Code 1 creates a link between two Roller Blinds that allows them to be simultaneously operated. The chain drive is located on the left side of the window and both blinds will raise and lower using this single-chain drive.

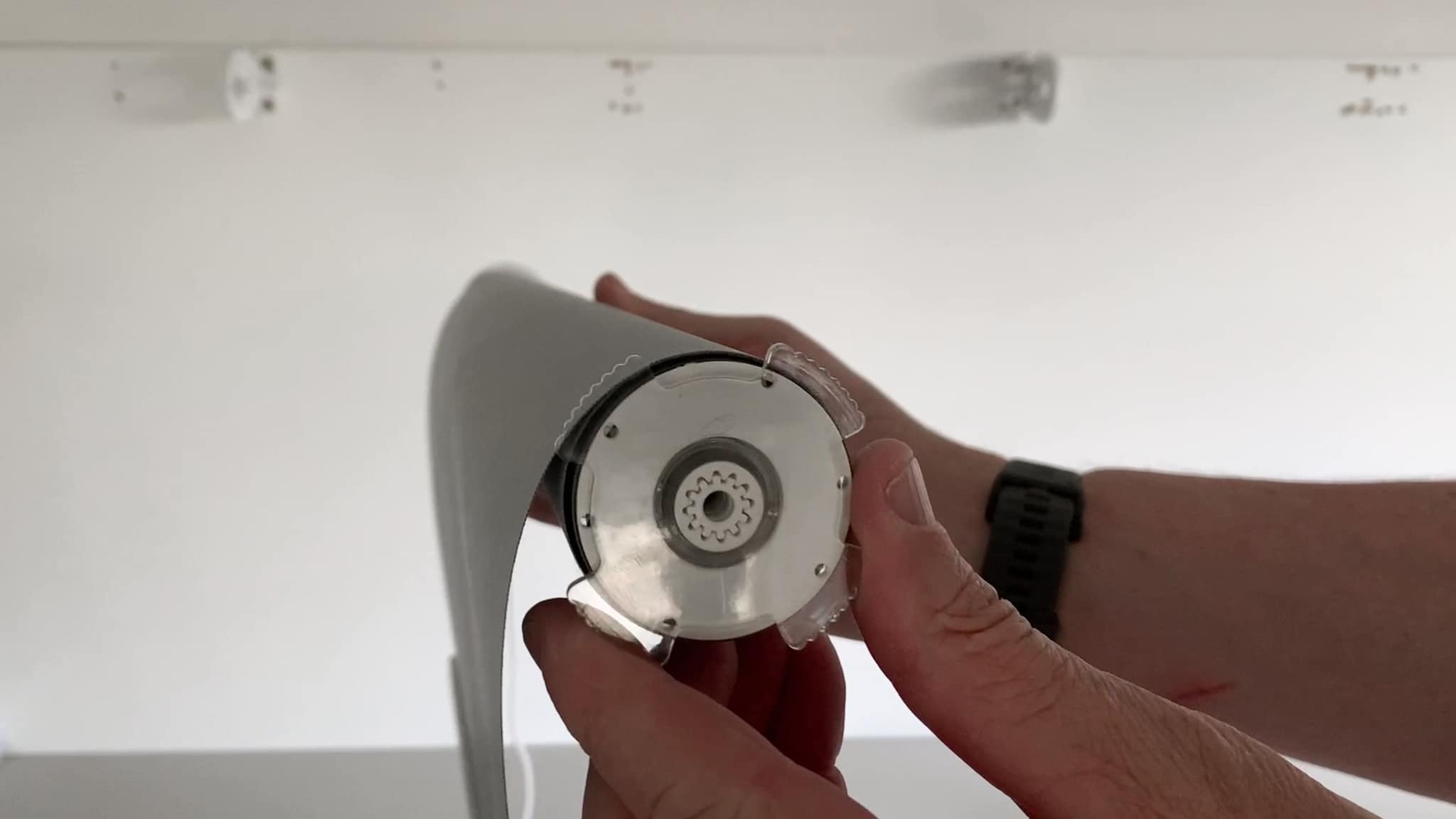

1. Rotate the clear plastic part to retract the female pin on the linking drive.

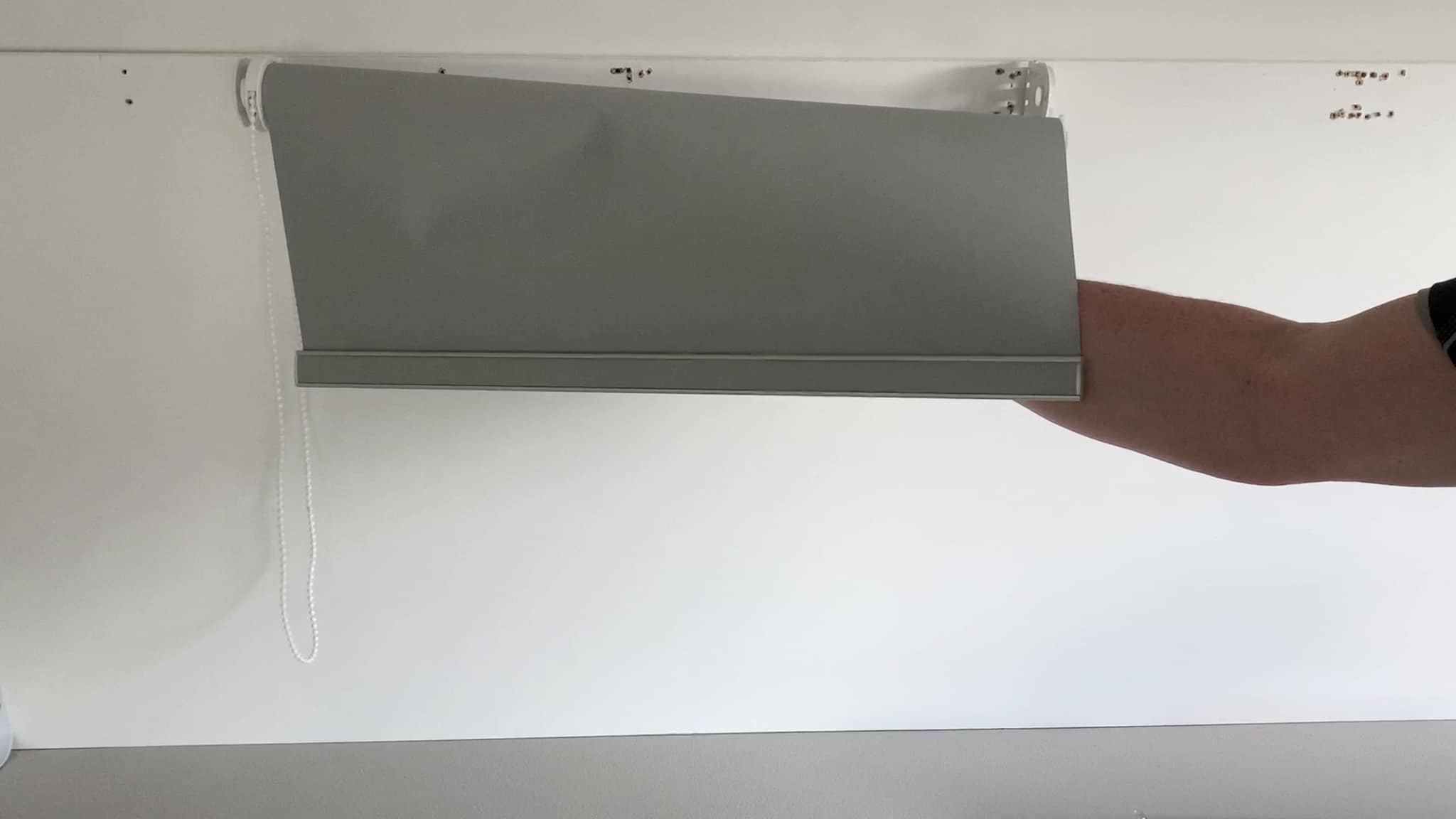

2. Install the blind by inserting the chain drive end into the bracket.
3. Carefully press the linking end of the blind into the corresponding bracket. It has a channel that should guide the linking end easily into place.

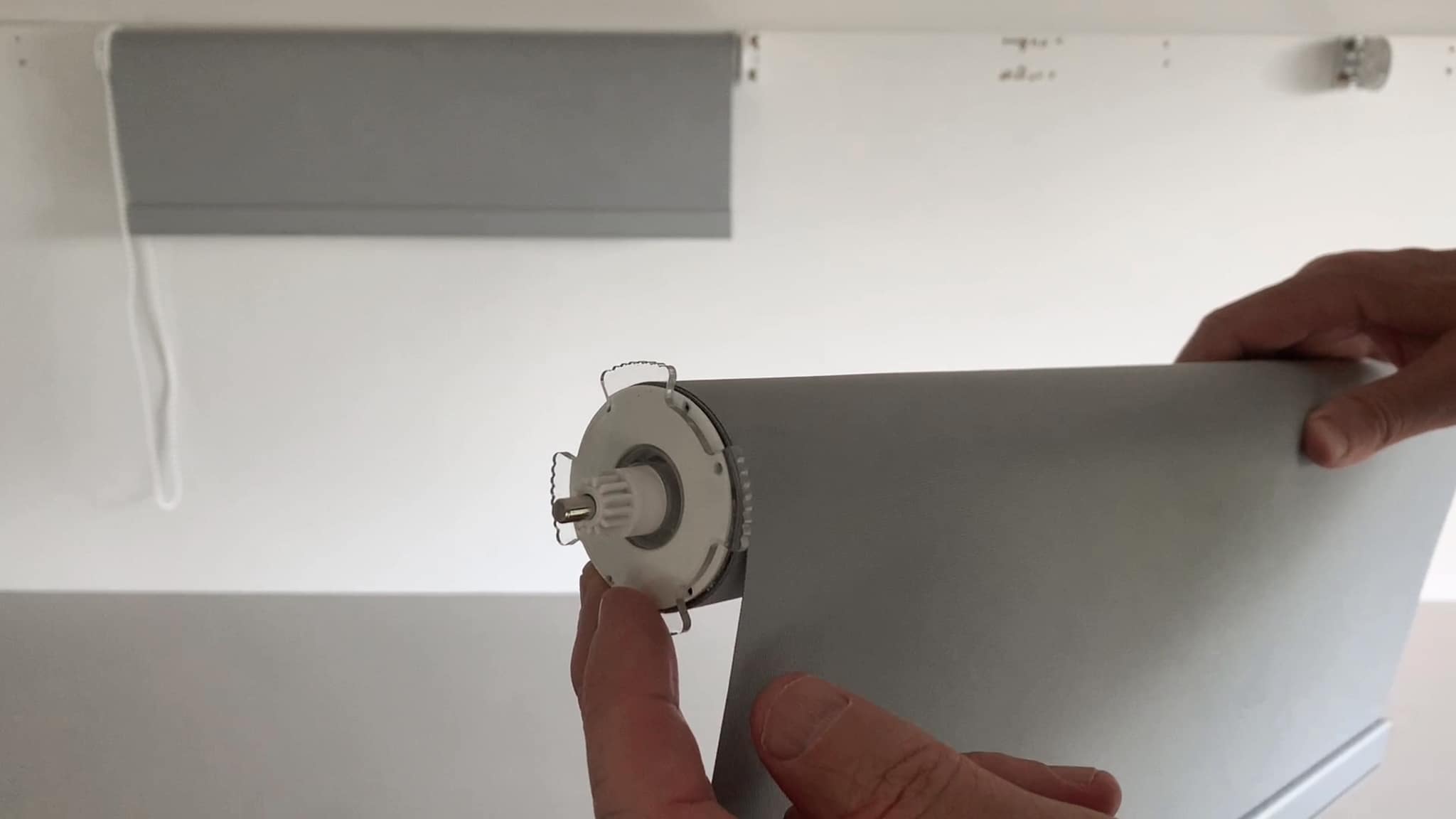

4. Keep the male pin extended as shown. Then insert the male linking end into the bracket but don't push it all the way in just yet.
5. Hold the blind up and rotate it so that it becomes level with the left blind (bottom rails line up).

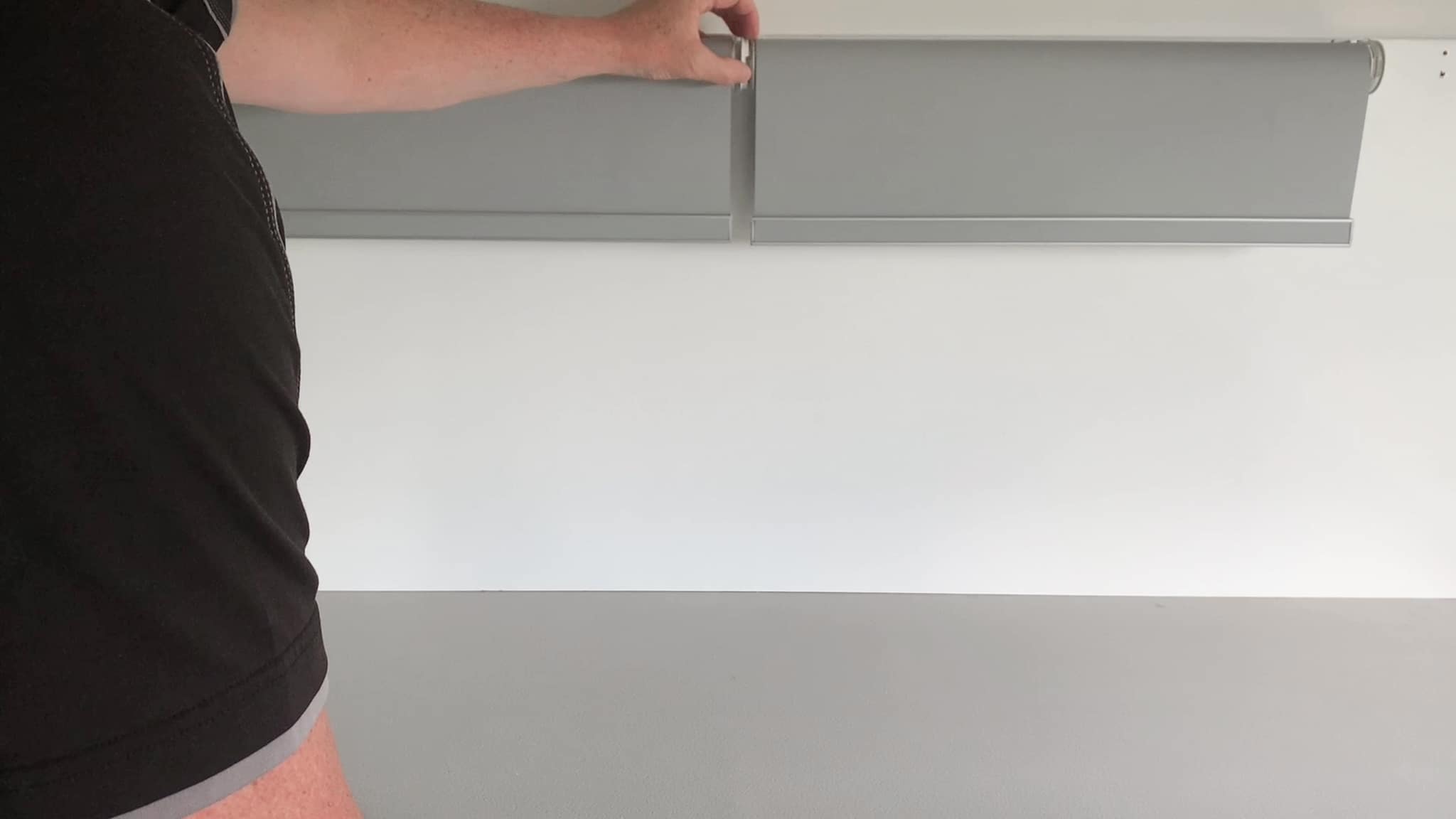

6. Once it is closely aligned finish pushing the blind in so that the gears of the two linking ends engage.
7. Finish installing the right blind by pushing the idle end into the bracket.

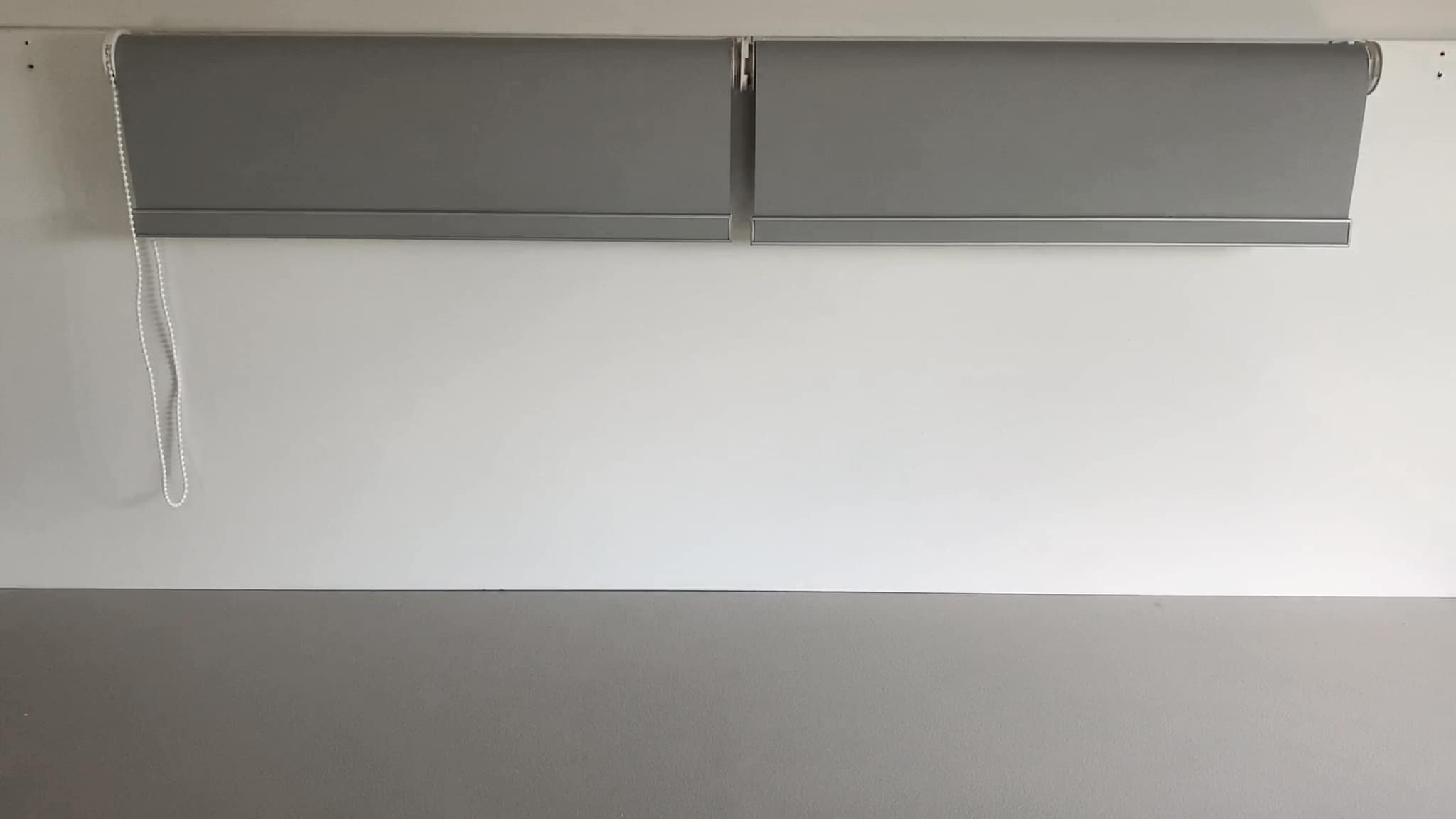

8. To make both of the blinds level, you can twist the clear plastic winder to make fine adjustments to get them both perfectly aligned.

9. Test the Blind to ensure it is operating correctly.

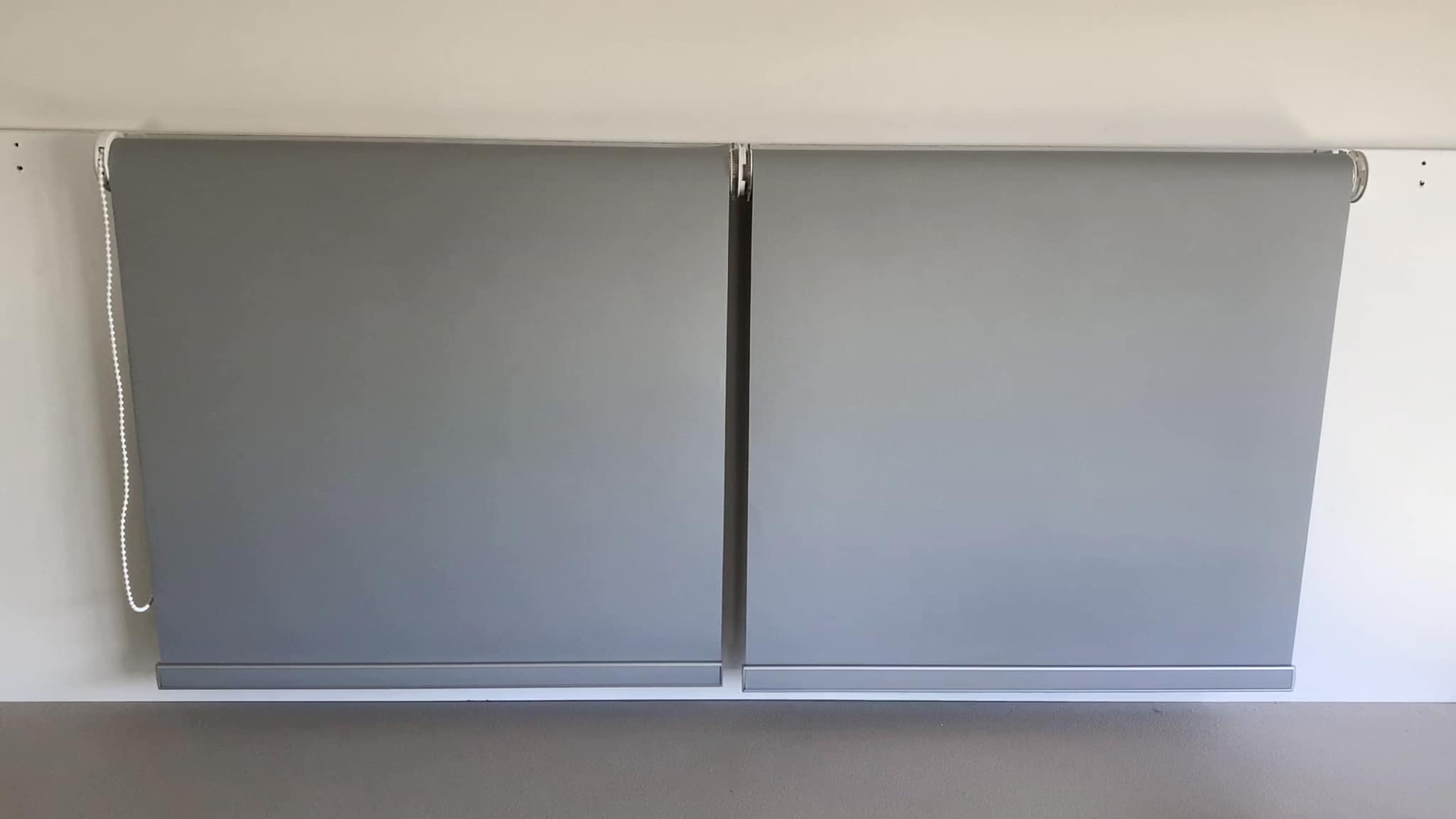

Congratulations you have successfully installed a Link Code 1 Roller Blind.
