Fit Spring Assist to Swivel Chain Drive

By Betta Blinds and Awnings - 5th December 2022
Applies to our Dual Roller Blinds only.

Remove the End Cap

1. Use a phillips head screwdriver to remove the small screw that secures the cap to the chain drive. The cap will then fall off to expose the screw underneath.

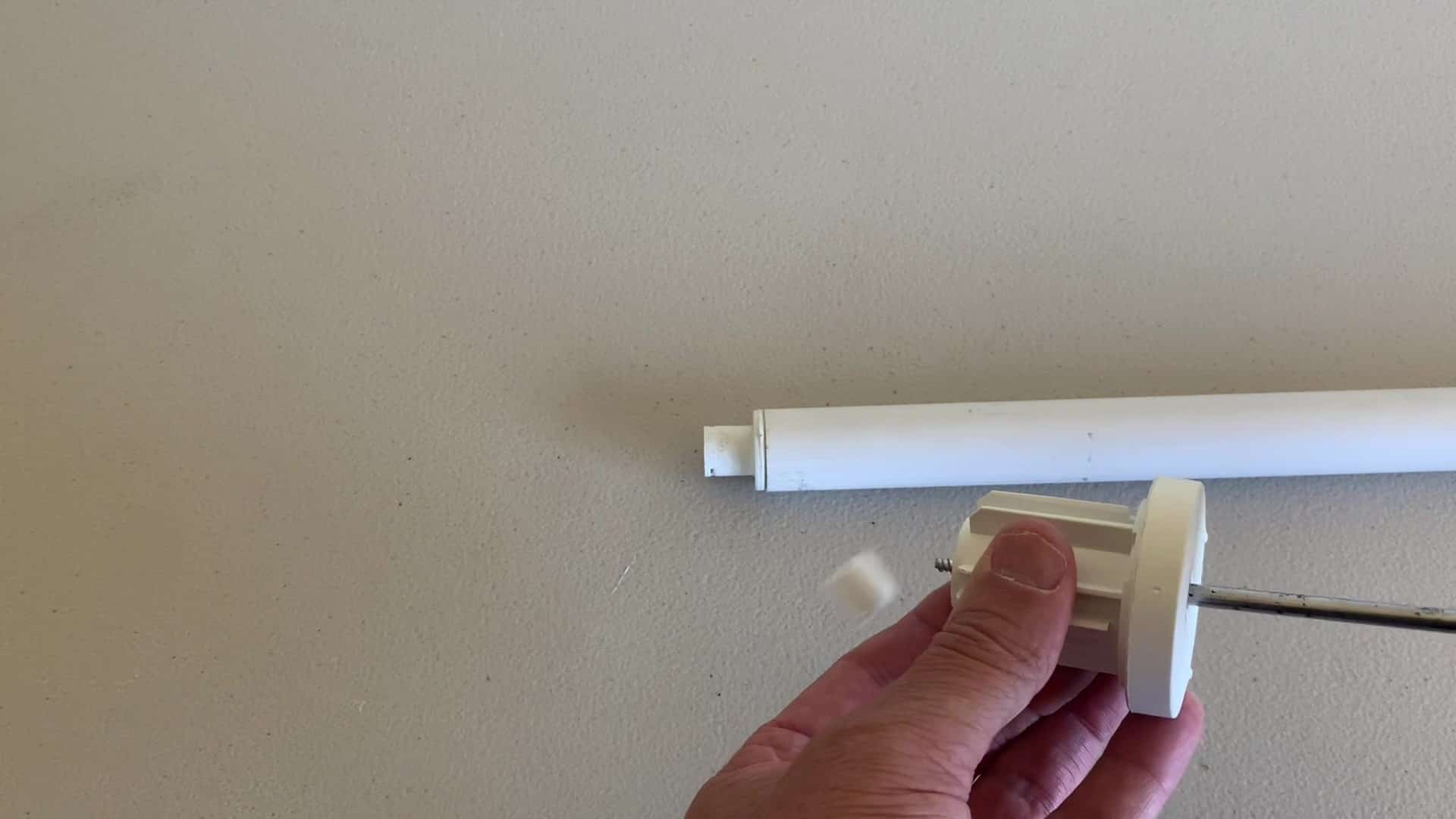

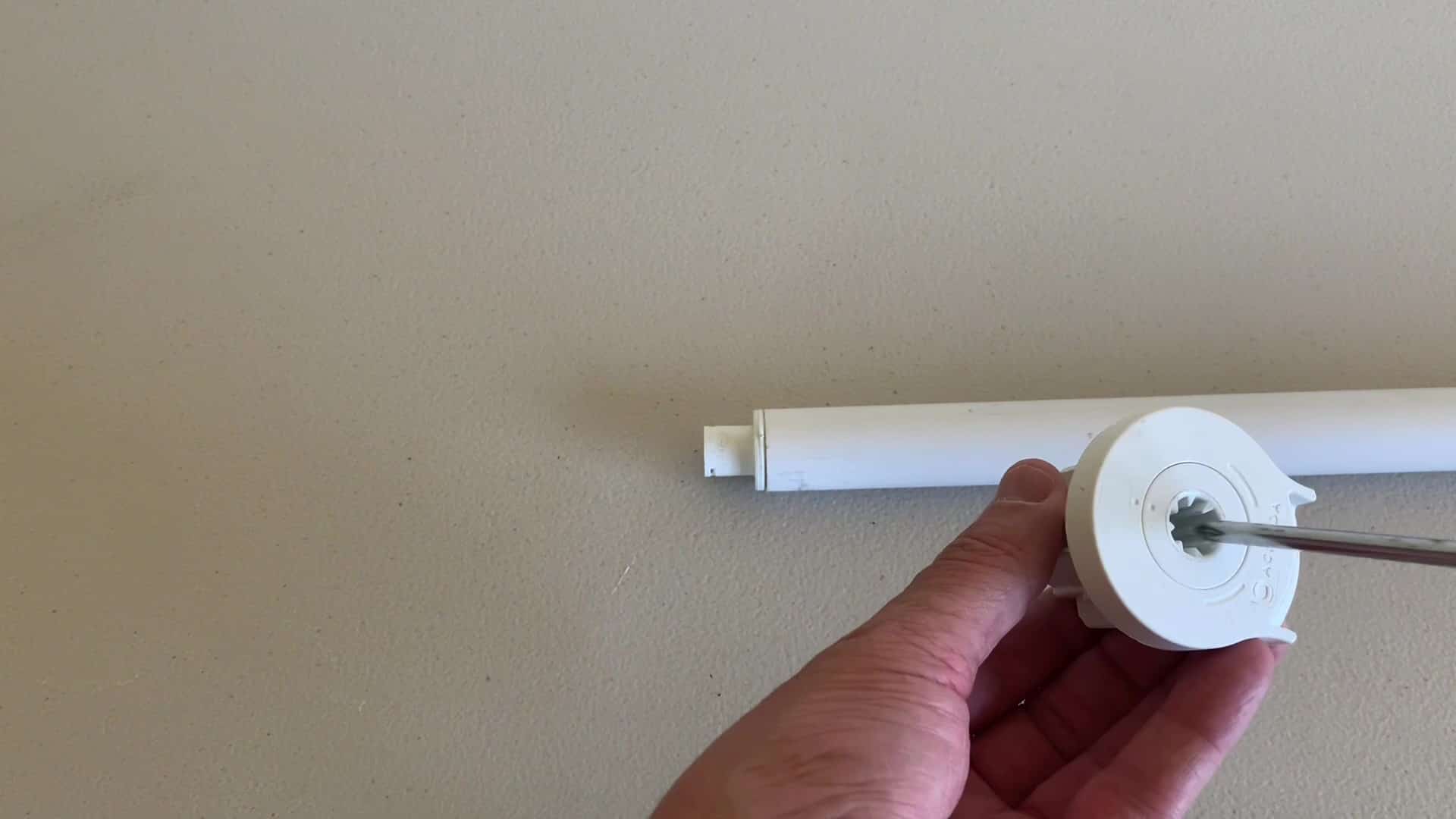

remove roller blind chain drive plastic cap
remove roller blind chain drive plastic cap

Insert Chain Drive Into Spring Assist

2. Grab your spring assist and insert the chain drive into it.
3. Twist the spring assist to get the chain drive into the slot.

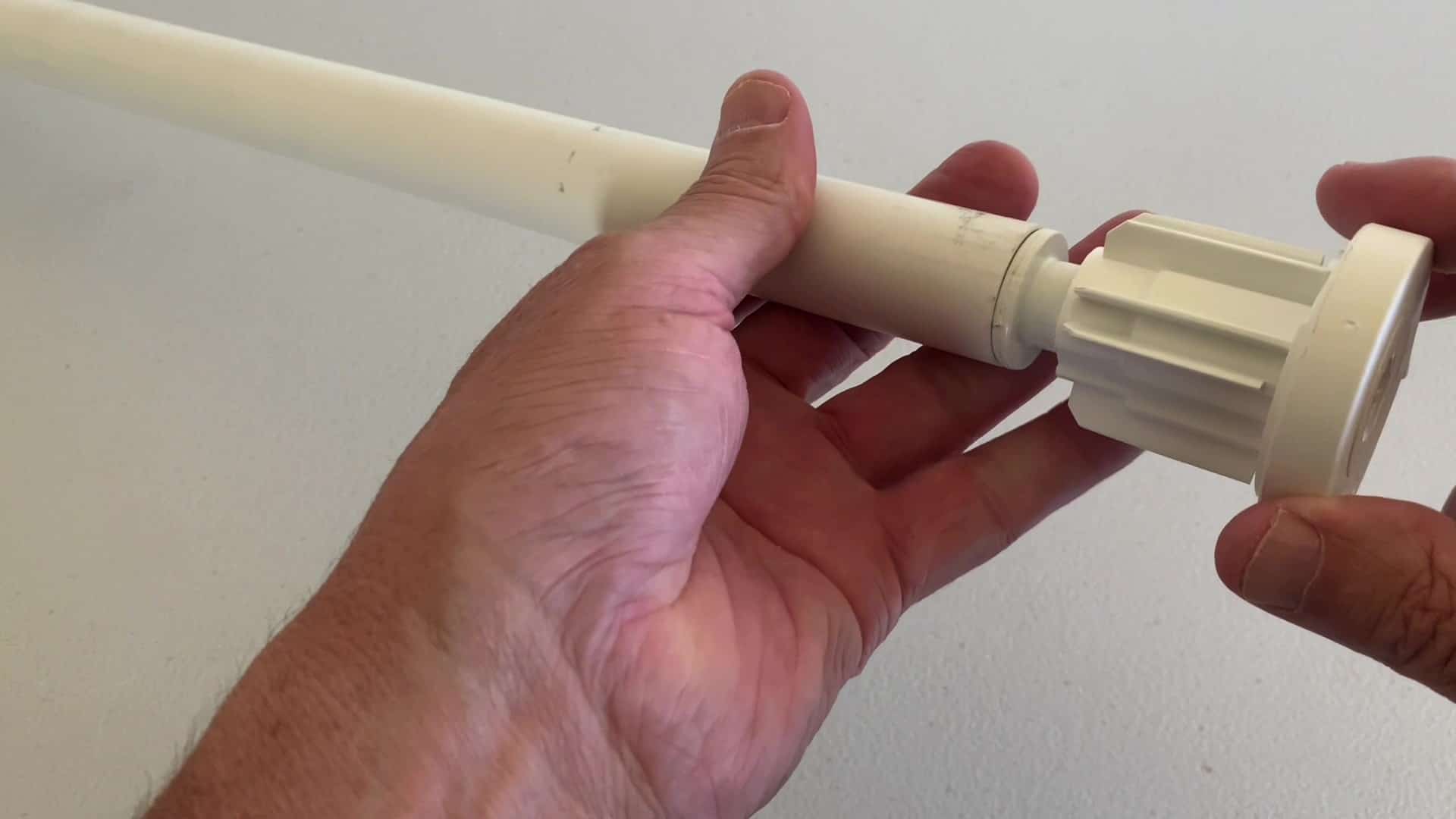

insert the roller blind chain drive

Secure the Spring Assist

4. Screw in the screw to fix the spring assist to the chain drive.

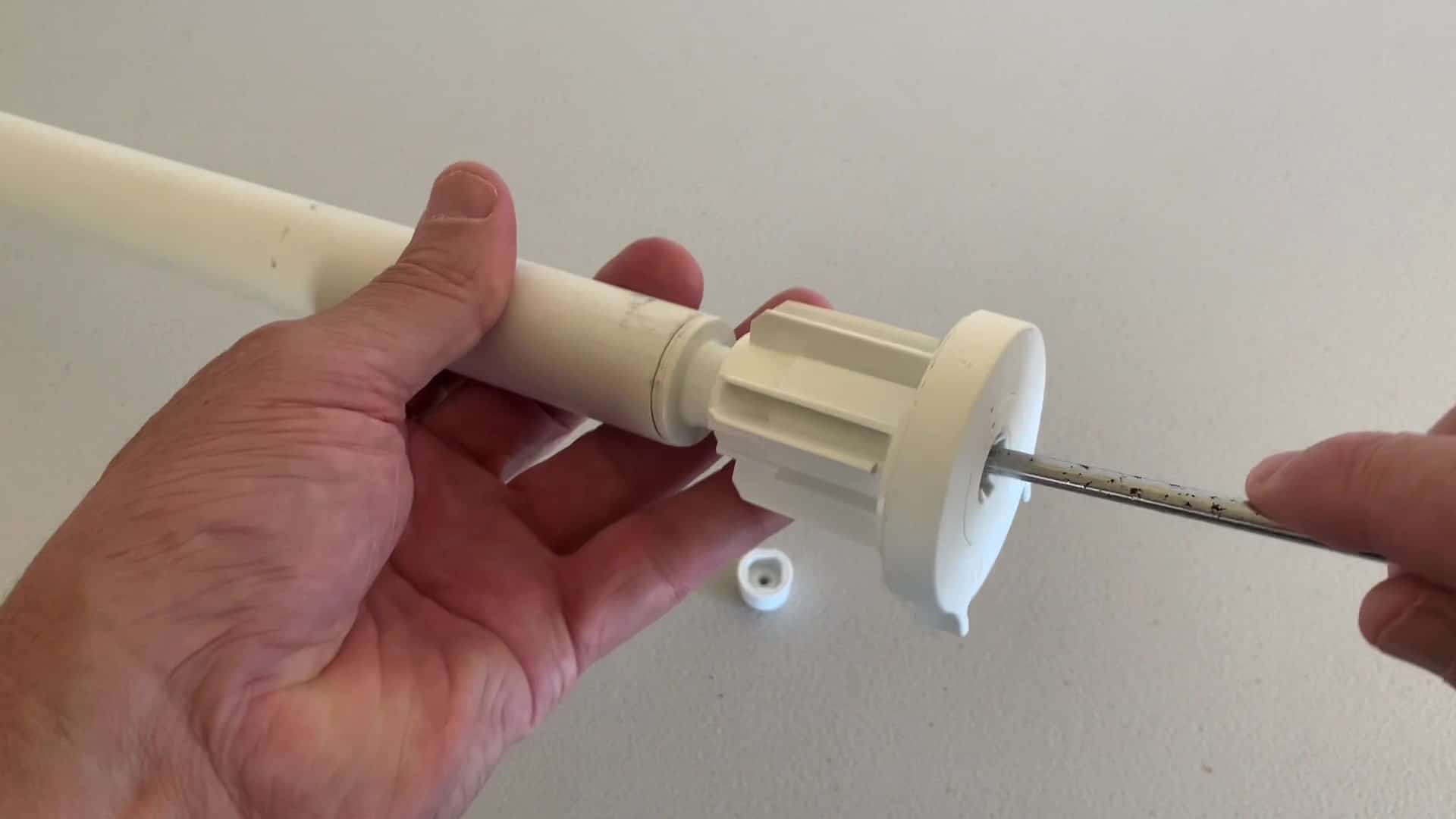

screw the chain drive in

Apply Spring Tension

5. Apply the appropriate tension to your spring. The number of turns and the direction of turns required will vary based the size of the blind. We cover this information in our how to retrofit a Roller Blind spring assist video.

And You're Done!

Congratulations you have successfully added a spring assist to a swivel chain drive!
