Change Roller Blind From Front Roll to Back Roll
By Betta Blinds and Awnings - 5th December 2022
Note
This applies to our Standard Range Roller Blinds. If you have a Builders Range Roller Blind you can check out this guide instead.
This applies to our Standard Range Roller Blinds. If you have a Builders Range Roller Blind you can check out this guide instead.
What is a Back Roll Roller Blind?
A Back Roll Roller Blind places the fabric deeper into the window. This reduces the amount of space between the Blind Fabric and the window. In a back roll the fabric rolls off the back of the tube and into the window.

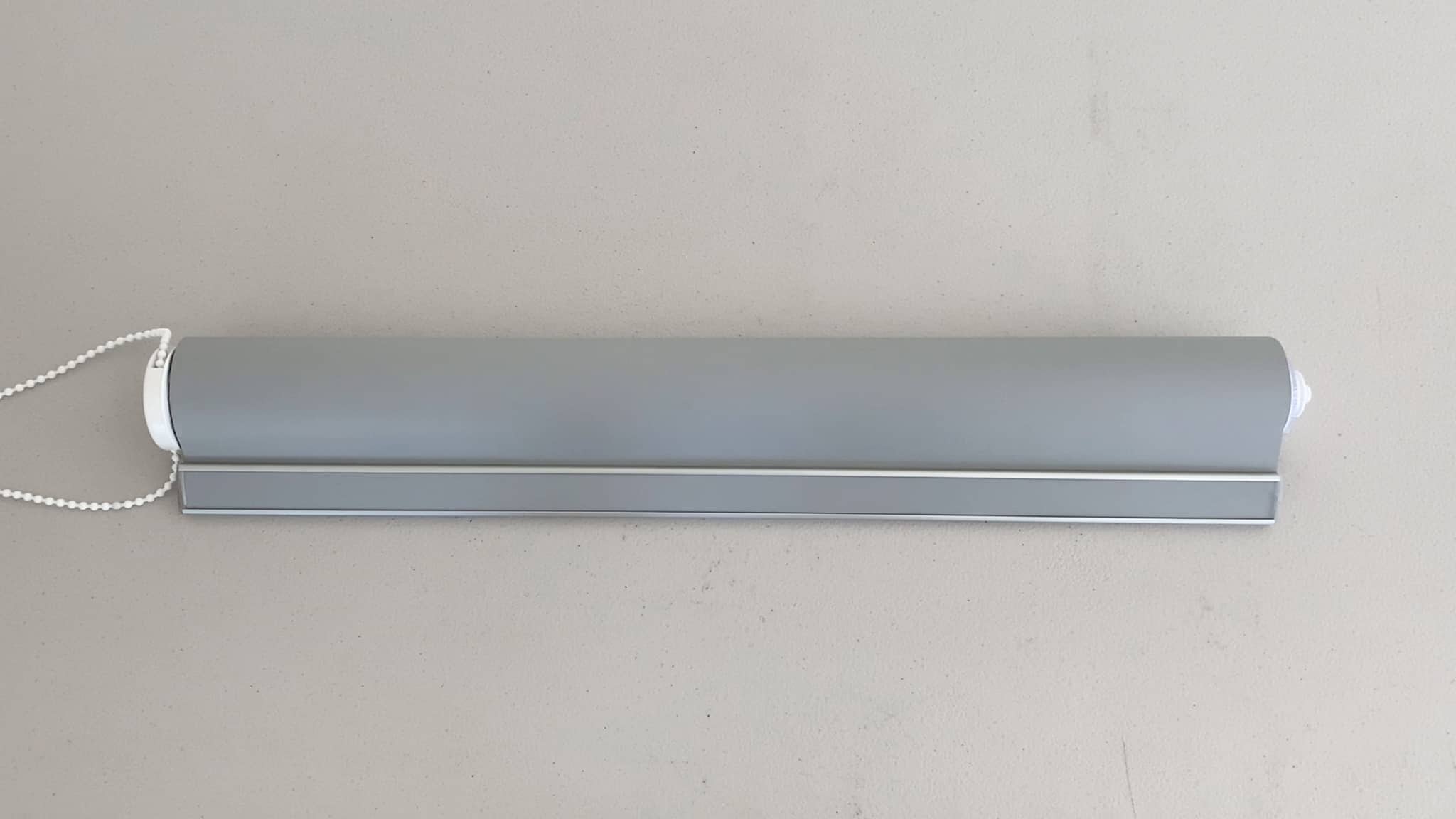

Remove the Blind
1. Rotate the clear plastic part to retract the female pin on the idle end.

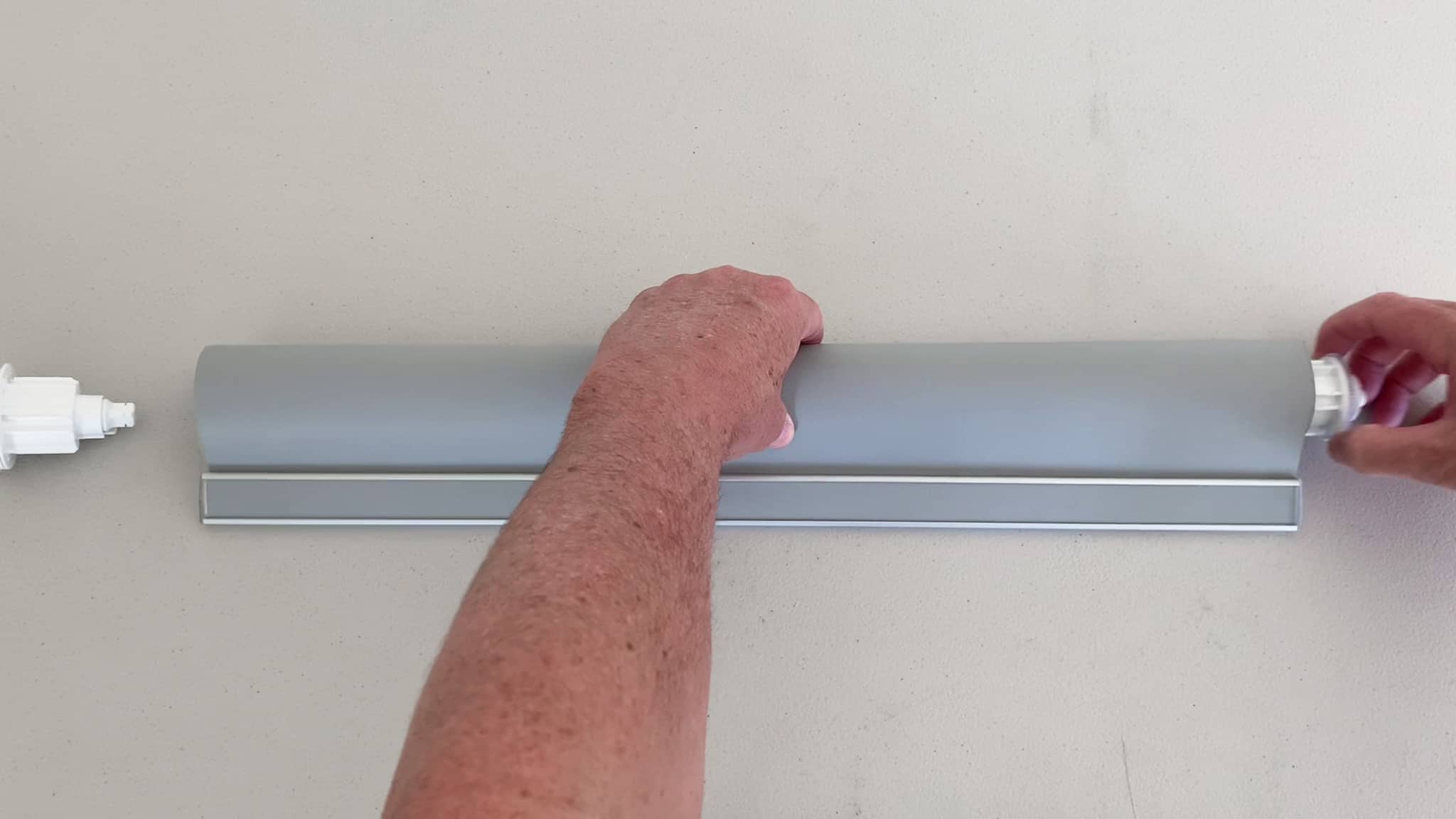

Remove the Chain Drive and Idle End
2. Remove both the chain drive and idle end components.
Flip the Blind

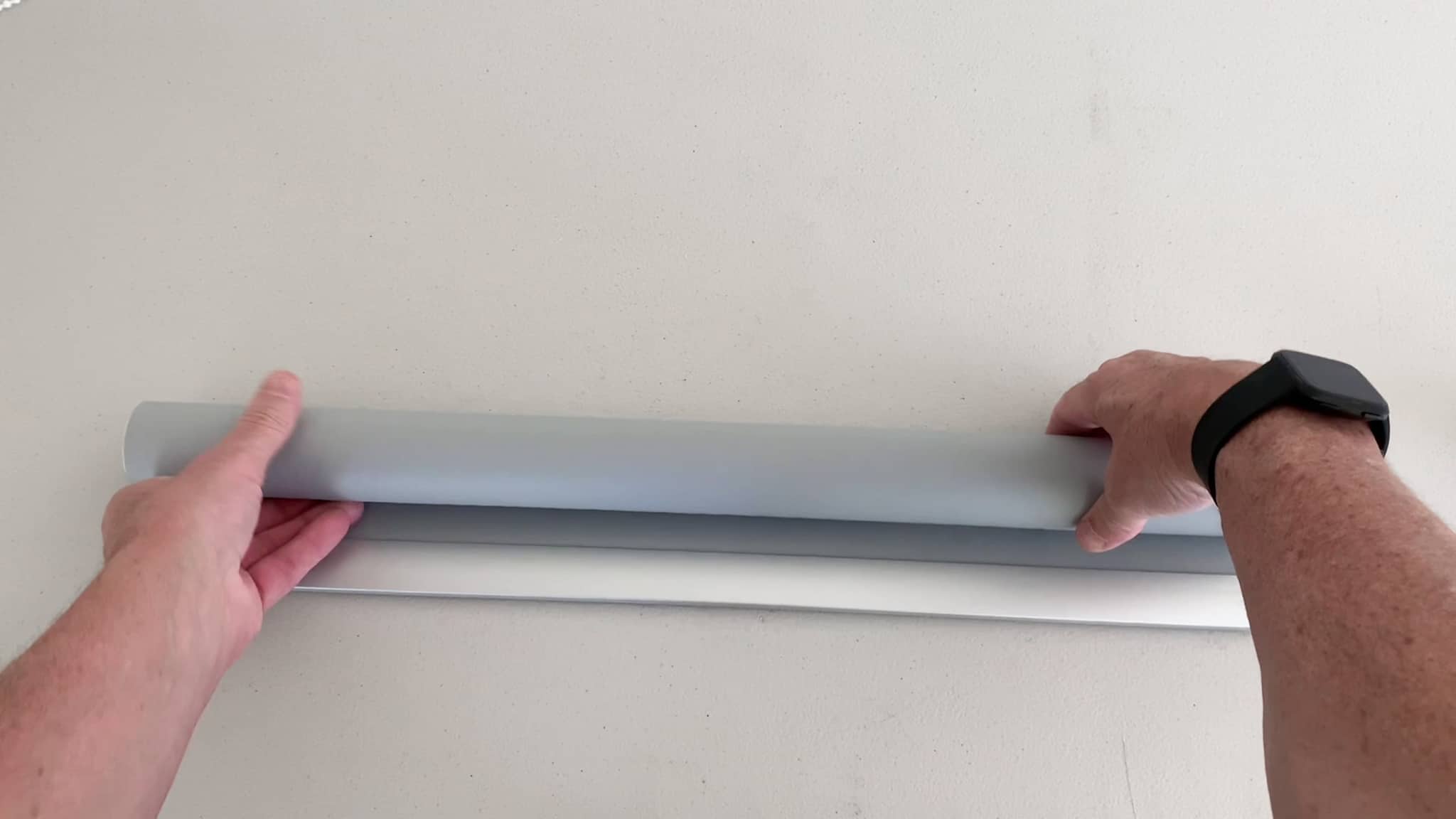

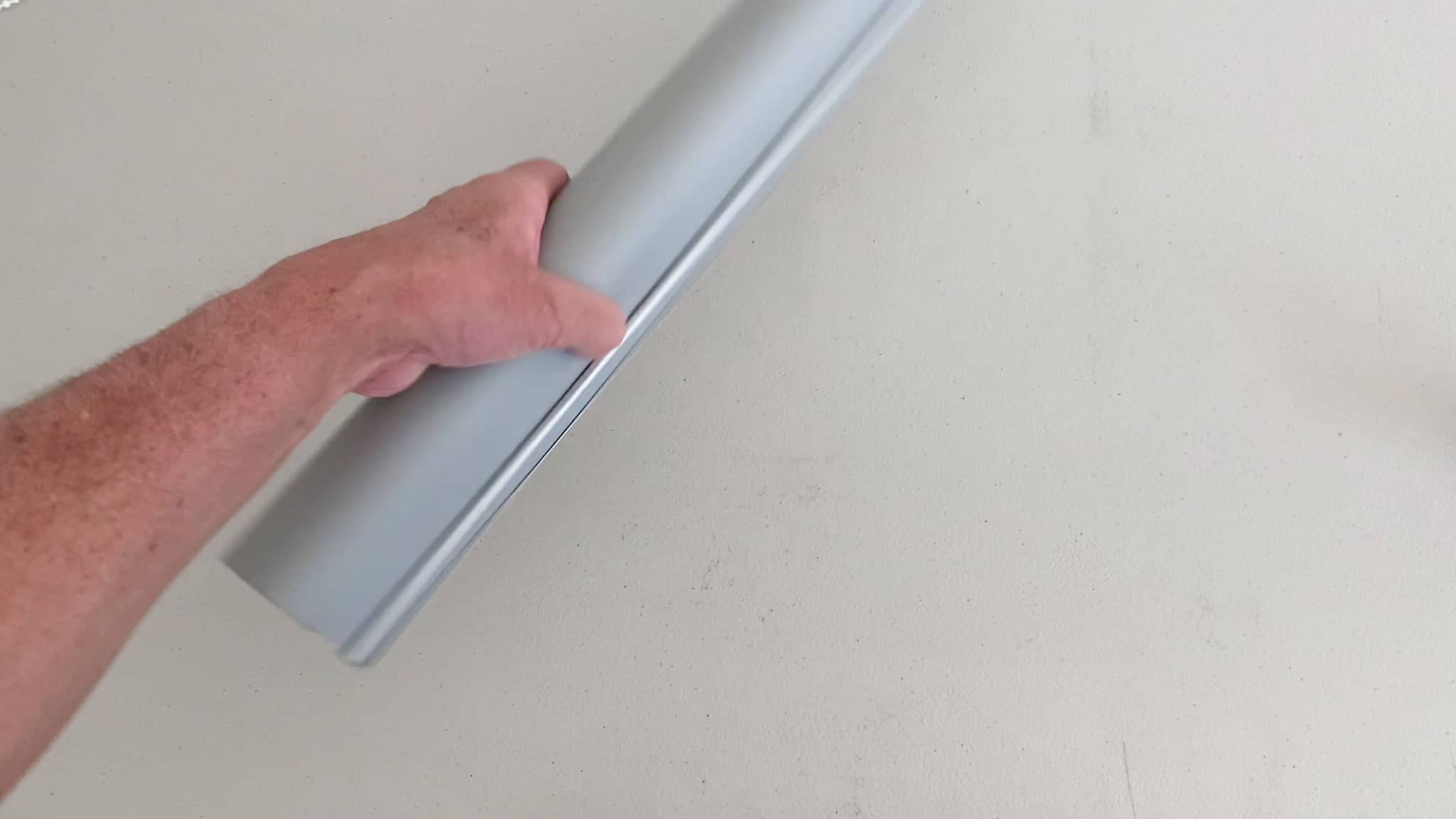

3. Flip the Blind so that it enters the back roll position.
Roll up the Fabric
4. Use the bottom rail to roll up the fabric until you only have around 300mm of fabric remaining.
Remove the Fabric from the Tube
5. Carefully hold the fabric with one hand and gently remove the tube from the fabric.
Note
Other Roller Blinds may use a spline (thin piece of plastic) to attach the fabric to the tube rather than our heavy-duty tape. You will need to slide it out of the channel.
Other Roller Blinds may use a spline (thin piece of plastic) to attach the fabric to the tube rather than our heavy-duty tape. You will need to slide it out of the channel.

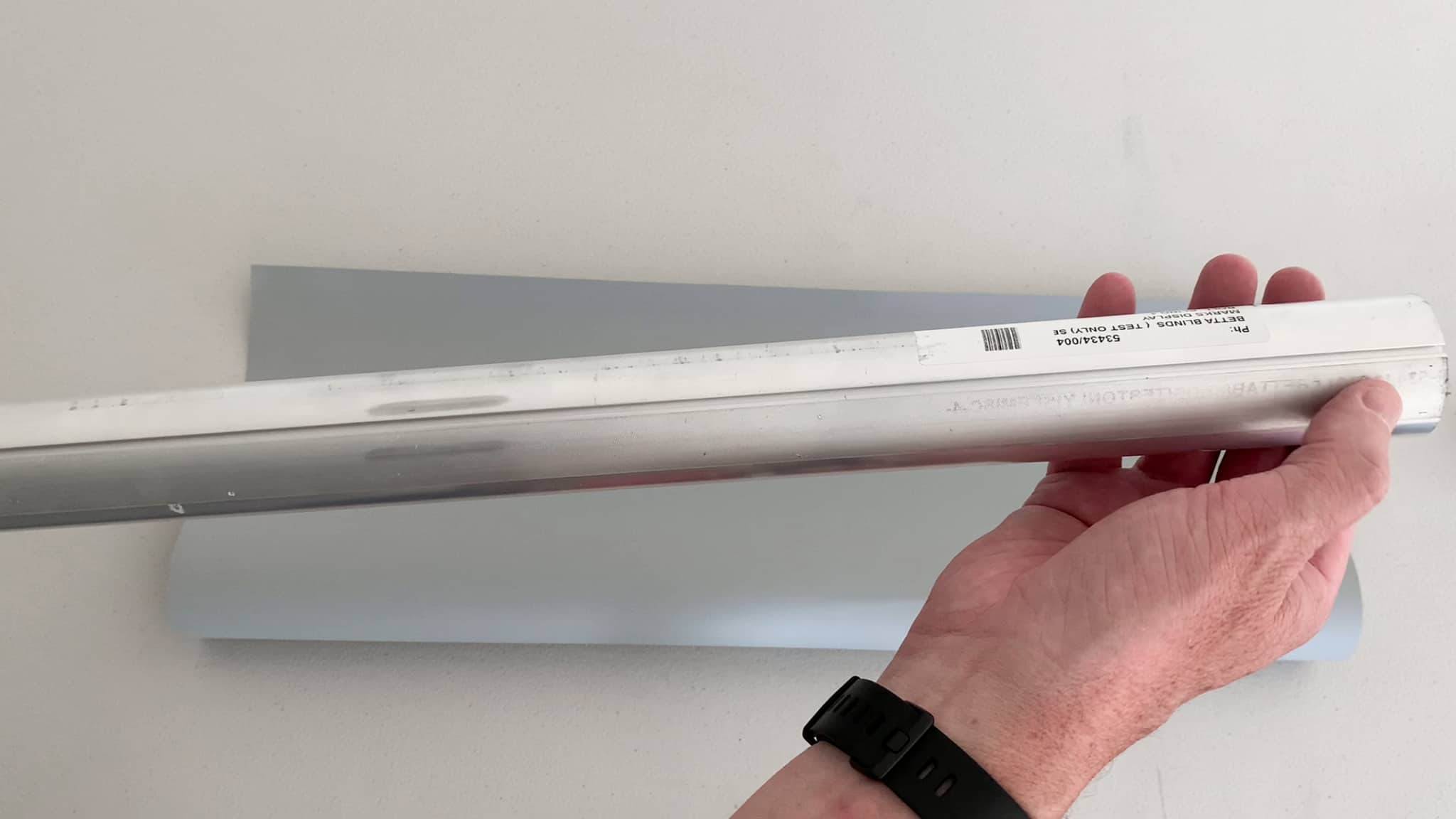

Flip the Tube Around
6. Flip the tube around so that the heavy-duty tape is around the opposite way.
7. Press the fabric into the heavy-duty tape and run your finger along it so that it fastened to the tape.
7. Press the fabric into the heavy-duty tape and run your finger along it so that it fastened to the tape.
Roll up the Fabric

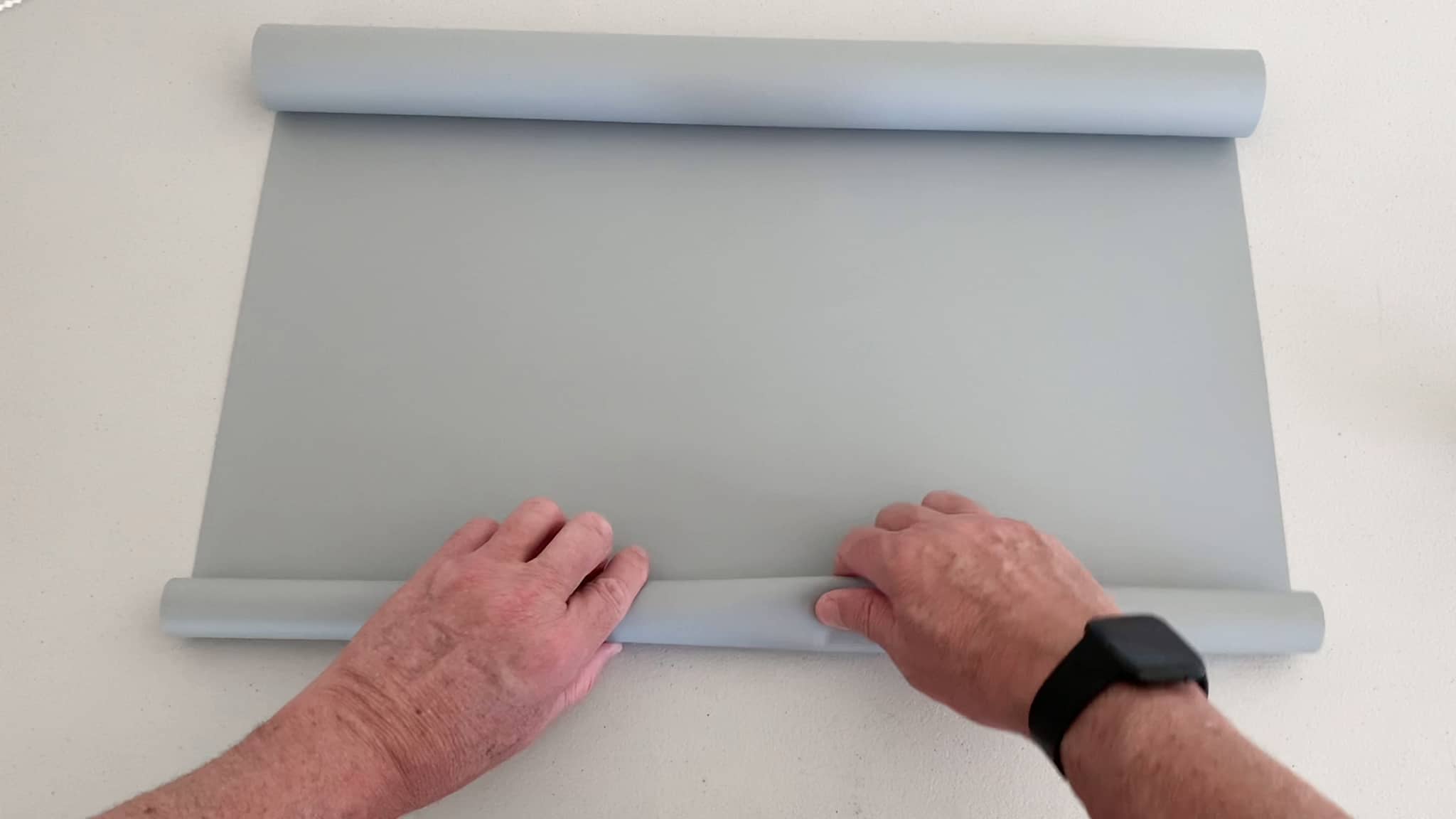

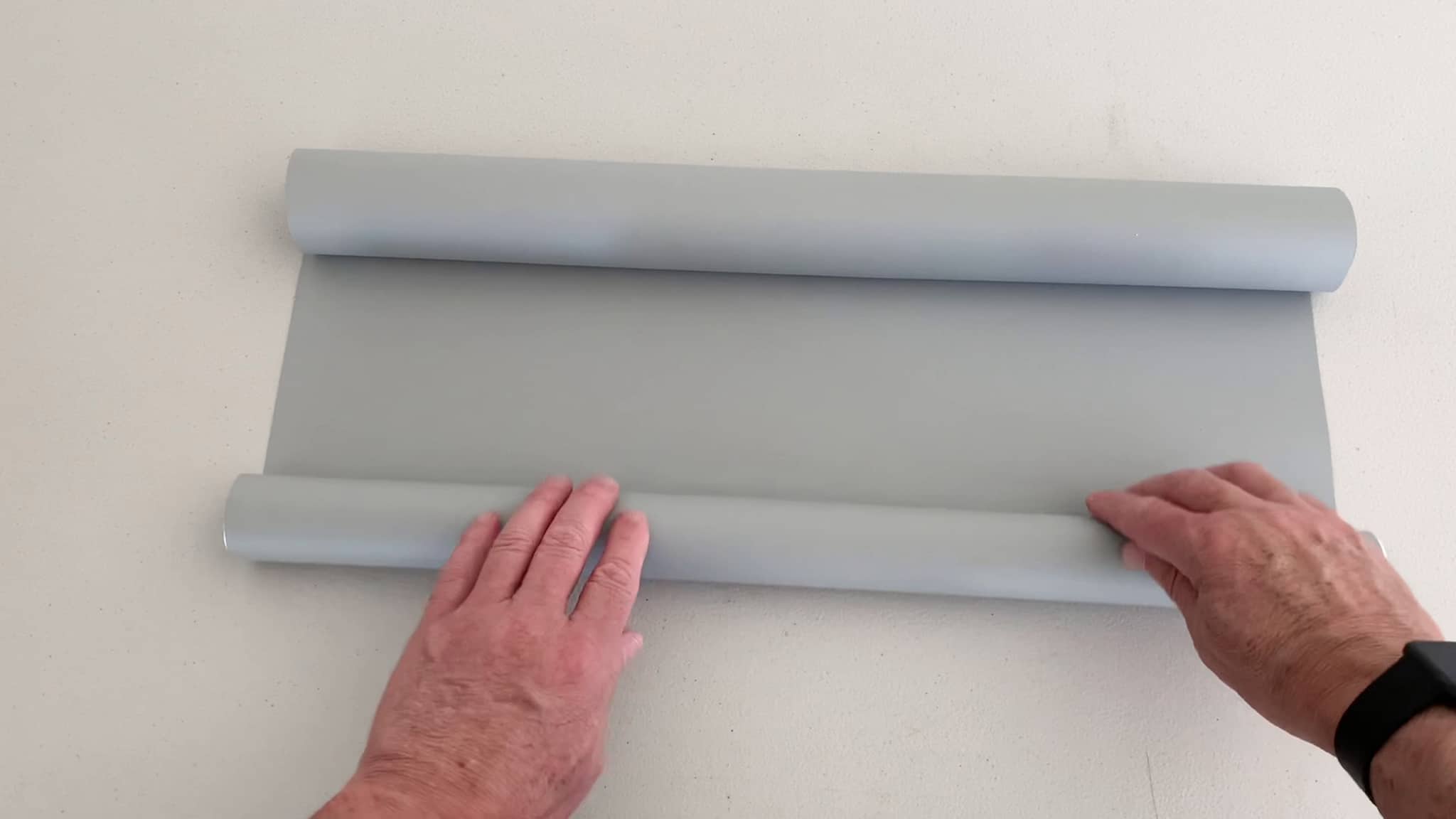

8. Roll the fabric onto the tube until you get towards the end of the fabric.

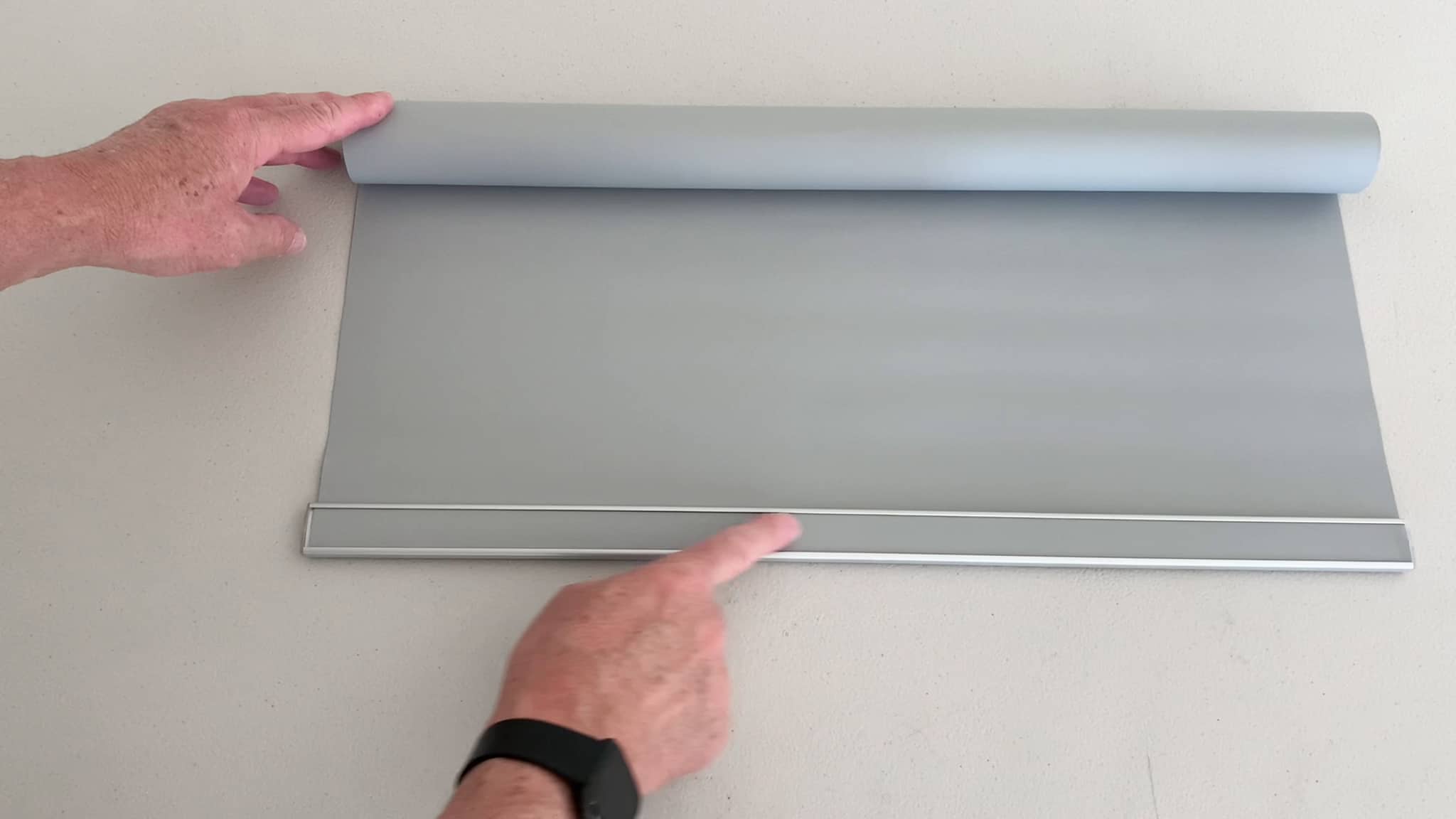

9. Then rotate the blind so that the bottom rail is now on the bottom.
9. Then rotate the blind so that the bottom rail is now on the bottom.
Reinstall Chain Drive

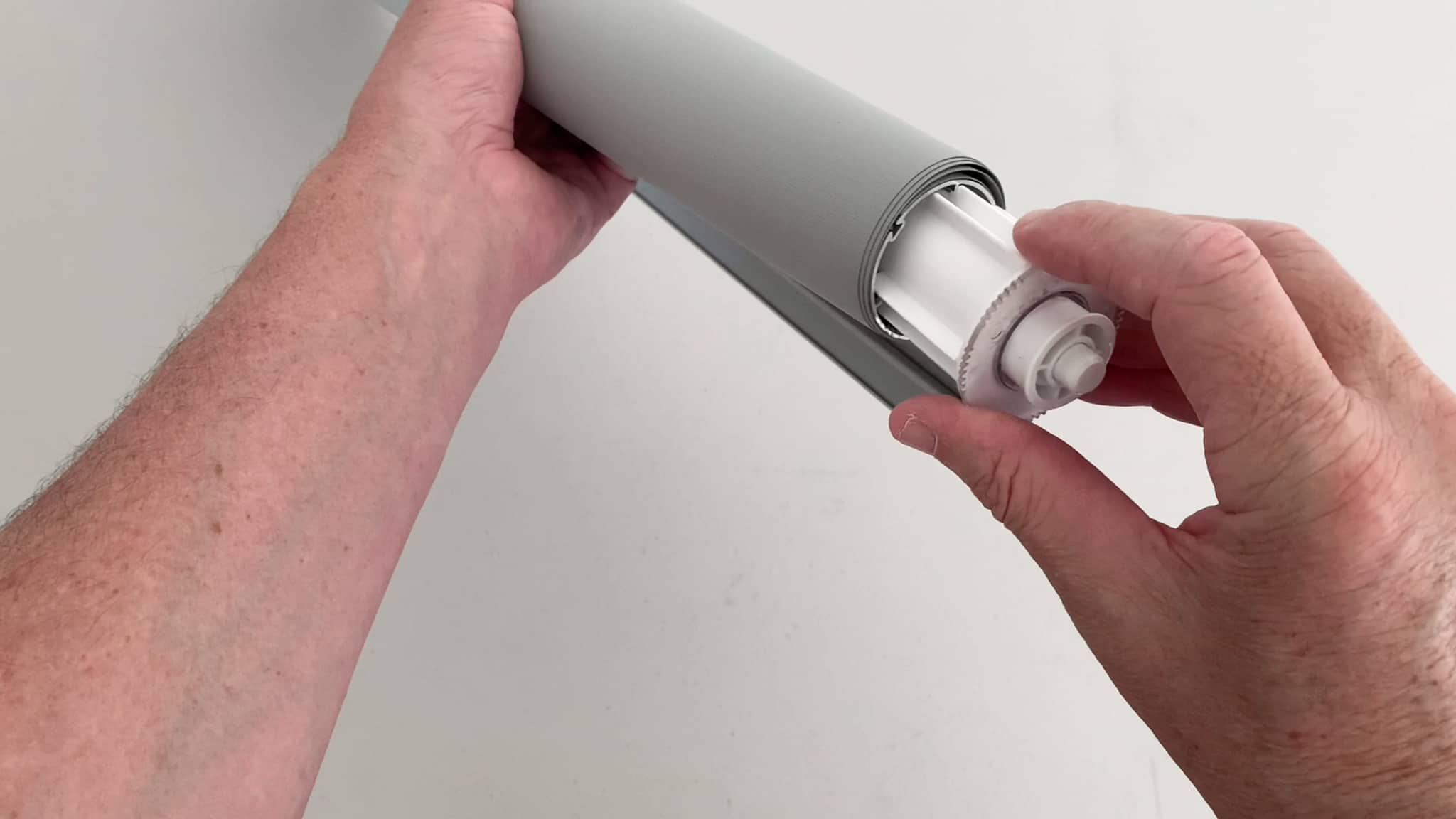

10. Reinstall the chain drive and the pin end so that the Blind can be mounted into the brackets.
Install the Blind
11. Install the blind back into the brackets and test to ensure it operates correctly.
And You're Done!
Congratulations you have successfully changed a Front Roll Roller Blind into a Back Roll Roller Blind!
